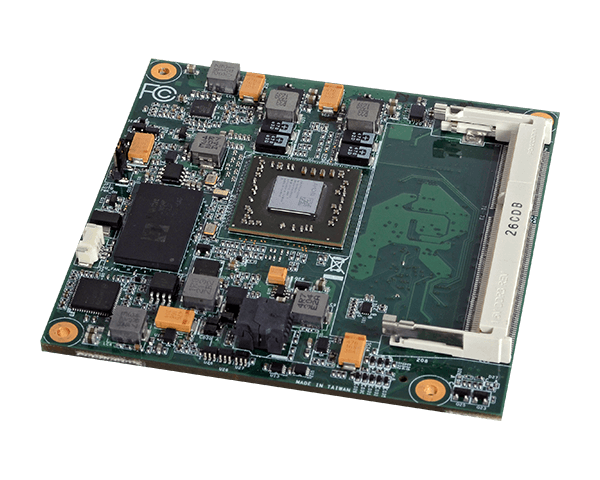

| KB968 / COM EXPRESS TYPE 6 | 산업용보드 > COM EXP Mini | 0 |
|---|---|---|
|
제품문의 02-3016-2464 http://www.wjubc.co.kr
AMD® Embedded G-Series Rich I/O: 1 Intel GbE, 2 USB 3.0, 6 USB 2.0 Multiple expansion: 1 PCIe x4, 1 LPC, 1 I2C, 1 SMBus 1 VGA, 1 LVDS/DP, 1 DP Single channel DDR3 1600MHz SODIMM up to 8GB 5-Year CPU Life Cycle Support ? System Processor AMD® Embedded G-Series SoC FT3 BGA AMD® GX-415GA, Quad Core, 2M Cache, 1.5GHz, 15W AMD® GX-420CA, Quad Core, 2M Cache, 2.0GHz, 25W AMD® GX-217GA, Dual Core, 1M Cache, 1.65GHz, 15W AMD® GX-210HA, Dual Core, 1M Cache, 1.0GHz, 9W AMD® GX-210JA, Dual Core, 1M Cache, 1.0GHz, 6W AMD® GX-416RA, Quad Core, 2M Cache, 1.6GHz, 15W, without GPU Memory One 204-pin SODIMM up to 8GB Dual Channel DDR3 1600MHz BIOS 32Mbit SPI Graphics Controller Advanced discrete-level GPU integrated in the processor Feature Supports hardware acceleration for DirectX 11.1, H.264, MPEG-2, MPEG-4 AVC, VC-1 and WMV Display 1 x VGA 1 x LVDS/DP 1 x DP VGA: resolution up to 2048x1536 @ 60Hz LVDS: single channel 18-bit, resolution up to 1600x900 @ 60Hz DP: resolution up to 4096x2160 @ 30Hz Expansion Interface 1 x PCIe x4 (GFX) 4 x PCIe x1 (GPP, GPP3 is connected to onboard LAN by default) 1 x LPC 1 x I2C 1 x SMBus 2 x Serial (TX/RX) Audio Interface HD Audio Ethernet Controller 1 x Intel® WGI210AT (10/100/1000Mbps) I/O USB 2 x USB 3.0 6 x USB 2.0 SATA 2 x SATA 3.0 (up to 6Gb/s) SSD 1 x 2GB/4GB8GB/16GB/32GB/64GB SSD (available upon request) DIO 1 x 8-bit DIO Watchdog Timer Output & Interval System Reset, Programmable via Software from 1 to 255 Seconds Security TPM Available Upon Request Power Type 12V, 5VSB, VCC_RTC (ATX mode) 12V, VCC_RTC (AT mode) Consumption KB968-GX420BBS: 28.58 W with GX-420CA at 2.0GHz and 1 x 4GB DDR3 SODIMM OS Support OS Support Windows 7 Ultimate x86 & SP1 (32-bit) Windows 7 Ultimate x64 & SP1 (64-bit) Windows 8 Enterprise x86 (32-bit) Windows 8 Enterprise x64 (64-bit) Environment Temperature Operating: 0 to 60°C Storage: -20 to 85°C Humidity Operating: 10 to 90% RH Storage: 10 to 90% RH MTBF TBD Mechanism Dimensions COM Express® Compact 95mm (3.74") x 95mm (3.74") Compliance PICMG COM Express® R2.1, Type 6 Packing List Packing List 1 KB968 board Heat spreader with heat sink and fan: 761-KB9680-000G
