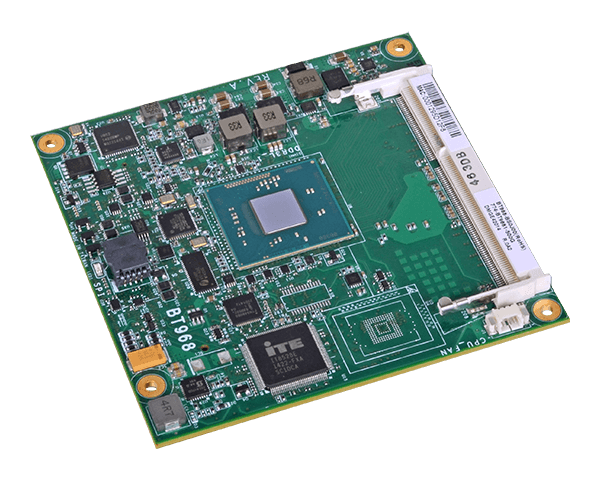

| BT968 / COM EXPRESS TYPE 6 | 산업용보드 > COM EXP Mini | 0 |
|---|---|---|
|
제품문의 02-3016-2464 http://www.wjubc.co.kr
Intel Atom® E3800 Series Rich I/O: 1 Intel GbE, 1 USB 3.0, 8 USB 2.0 Multiple expansions: 3 PCIe x1, 2 SATA 2.0 Support Dual Displays: 1 VGA, 1 LVDS, 1 DDI (HDMI/DVI/DP) Dual Channel DDR3L 1333MHz SODIMM up to 8GB 15-Year CPU Life Cycle Support ? System Processor Intel Atom® Processor E3800 Series, BGA 1170 Intel Atom® E3845, Quad Core, 2M Cache, 1.91GHz, 10W Intel Atom® E3827, Dual Core, 1M Cache, 1.75GHz, 8W Intel Atom® E3815, Single Core, 0.5M Cache, 1.46GHz, 5W Intel® Celeron® J1900, Quad Core, 2M Cache, 2GHz (2.41GHz), 10W Intel® Celeron® N2930, Quad Core, 2M Cache, 1.83GHz (2.16GHz), 7.5W Memory Two 204-pin SODIMM up to 8GB Dual Channel DDR3L 1333MHz BIOS AMI 64Mbit BIOS Graphics Controller Intel® HD Graphics Feature OpenGL 3.2, DirectX 11, OpenCL 1.2 HW Decode: AVC/H.264, MPEG2, VC1, WMV9, JPEG/MJPEG, HEVC/H.264, VP8, VP9, MVC HW Encode: AVC/H.264, JPEG/MJPEG, HEVC/H.264, VP8, VP9, MVC Display 1 x DDI (HDMI/DVI/DP) 1 x LVDS/DDI* (HDMI/DVI/DP) 1 x VGA LVDS: dual channel 24-bit, resolution up to 1920x1200 @ 60Hz HDMI/DVI: resolution up to 1920x1080 @ 60Hz DP: resolution up to 2560x1600 @ 60Hz VGA: resolution up to 1920x1200 @ 60Hz Expansion Interface 3 x PCIe x1 or 1 PCIe x4 1 x LPC 1 x I2C 1 x SMBus 2 x Serial (TX/RX) Audio Interface HD Audio Ethernet Controller 1 x Intel® I210AT (10/100/1000Mbps) I/O USB 1 x USB 3.0 8 x USB 2.0 SATA 2 x SATA 2.0 eMMC 1 x 4GB/8GB/16GB/32GB eMMC (available upon request) DIO 1 x 8-bit DIO Watchdog Timer Output & Interval System Reset, Programmable via Software from 1 to 255 Seconds Security TPM Available Upon Request Power Type 12V, 5VSB, VCC_RTC (ATX mode) 12V, VCC_RTC (AT mode) Consumption BT968-TS0-E45: 15.88W with E3845 at 1.91GHz and 2 x 4GB DDR3L SODIMM OS Support OS Support Windows 7 Ultimate x86 & SP1 (32-bit) Windows 7 Ultimate x64 & SP1 (64-bit) Windows 8 Enterprise x86 (32-bit) Windows 8 Enterprise x64 (64-bit) Windows 8.1 Enterprise x86 (32-bit) Windows 8.1 Enterprise x64 (64-bit) Windows 10 Enterprise x86 (32-bit) Windows 10 Enterprise x64 (64-bit) Environment Temperature Operating: 0 to 60°C, -20 to 70°C, -40 to 85°C Storage: -40 to 85°C Humidity Operating: 10 to 90% RH Storage: 10 to 90% RH MTBF 777,906 hrs @ 25°C; 394,833 hrs @ 45°C Calculation model: Telcordia Issue 2, Method I Case 3 Environment: GB, GC ? Ground Benign, Controlled Mechanism Dimensions COM Express® Compact 95mm (3.74") x 95mm (3.74") Compliance PICMG COM Express® R2.1, Type 6 Standards and Certifications Certifications CE, FCC Class B, RoHS Packing List Packing List 1 BT968 board 1 Heat spreader: A71-011039-000G
