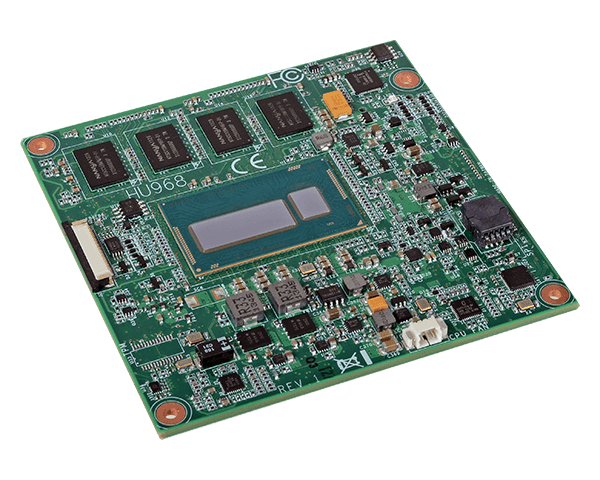

| HU968 / COM EXPRESS TYPE 6 | 산업용보드 > COM EXP Mini | 0 |
|---|---|---|
|
제품문의 02-3016-2464 http://www.wjubc.co.kr
4th Gen Intel® Core™ Dual channel DDR3L 1600MHz Memory Down up to 8GB 1 VGA, 1 LVDS, 1 DDI Multiple expansion: 1 PCIe x4, 3 SATA 3.0, 1 LPC, 1 I2C, 1 SMBus Rich I/O: 1 Intel GbE, 2 USB 3.0, 8 USB 2.0 7-Year CPU Life Cycle Support ? System Processor 4th generation Intel® Core™ processors, BGA 1168 Intel® Core™ i7-4650U, 4M Cache, up to 3.3 GHz, 15W Intel® Core™ i5-4300U, 3M Cache, up to 2.9 GHz, 15W Intel® Core™ i3-4010U, 3M Cache, 1.7 GHz, 15W Intel® Celeron® 2980U, 2M Cache, 1.6 GHz, 15W Memory 2GB/4GB/8GB DDR3L Memory Down Dual Channel DDR3L 1600MHz BIOS AMI SPI 64Mbit Graphics Controller Intel® HD Graphics GT Series Feature OpenGL up to 4.0, DirectX 11.1, OpenCL 1.2 Display 1 x VGA 1 x LVDS 1 x DDI (HDMI/DVI/DP) VGA: resolution up to 1920x1200 @ 60Hz LVDS: dual channel 24-bit, resolution up to 1920x1200 @ 60Hz HDMI/DVI: resolution up to 4096x2160 @ 24Hz DP: resolution up to 3200x2000 @ 60Hz Expansion Interface 1 x PCIe x4 1 x PCIe x2 1 x PCIe x1 1 x LPC 1 x I2C 1 x SMBus 2 x Serial (TX/RX) Audio Interface HD Audio Ethernet Controller 1 x Intel® I218LM with iAMT9.5 (10/100/1000Mbps) I/O USB 2 x USB 3.0 8 x USB 2.0 SATA 3 x SATA 3.0 (up to 6Gb/s) RAID 0/1/5 GPIO 1 x 4-bit GPIO (Default 4 inputs and 4 outputs) Watchdog Timer Output & Interval System Reset, Programmable via Software from 1 to 255 Seconds Security TPM Available Upon Request Power Type 12V, 5VSB, VCC_RTC (ATX mode) 12V, VCC_RTC (AT mode) Consumption TBD OS Support OS Support Windows 7 Ultimate x86 & SP1 (32-bit) Windows 7 Ultimate x64 & SP1 (64-bit) Windows 8 Enterprise x86 (32-bit) Windows 8 Enterprise x64 (64-bit) Windows 8.1 Enterprise x86 (32-bit) Windows 8.1 Enterprise x64 (64-bit) Environment Temperature Operating: 0 to 60°C Storage: -20°C to 85°C Humidity Operating: 5 to 90% RH Storage: 5 to 90% RH MTBF 680,852 hrs @ 25°C; 381,340 hrs @ 45°C Calculation model: Telcordia Issue 2, Method I Case 3 Environment: GB, GC ? Ground Benign, Controlled Mechanism Dimensions COM Express® Compact 95mm (3.74") x 95mm (3.74") Compliance PICMG COM Express® R2.1, Type 6 Standards and Certifications Certifications CE, FCC, RoHS Packing List Packing List 1 HU968 board Heat spreader with heat sink and fan: 761-HU9681-000G ? System Processor 4th generation Intel® Core™ processors, BGA 1168 Intel® Core™ i7-4650U, 4M Cache, up to 3.3 GHz, 15W Intel® Core™ i5-4300U, 3M Cache, up to 2.9 GHz, 15W Intel® Core™ i3-4010U, 3M Cache, 1.7 GHz, 15W Intel® Celeron® 2980U, 2M Cache, 1.6 GHz, 15W Memory 2GB/4GB/8GB DDR3L Memory Down Dual Channel DDR3L 1600MHz BIOS AMI SPI 64Mbit Graphics Controller Intel® HD Graphics GT Series Feature OpenGL up to 4.0, DirectX 11.1, OpenCL 1.2 Display 1 x VGA 1 x LVDS 1 x DDI (HDMI/DVI/DP) VGA: resolution up to 1920x1200 @ 60Hz LVDS: dual channel 24-bit, resolution up to 1920x1200 @ 60Hz HDMI/DVI: resolution up to 4096x2160 @ 24Hz DP: resolution up to 3200x2000 @ 60Hz Expansion Interface 1 x PCIe x4 1 x PCIe x2 1 x PCIe x1 1 x LPC 1 x I2C 1 x SMBus 2 x Serial (TX/RX) Audio Interface HD Audio Ethernet Controller 1 x Intel® I218LM with iAMT9.5 (10/100/1000Mbps) I/O USB 2 x USB 3.0 8 x USB 2.0 SATA 3 x SATA 3.0 (up to 6Gb/s) RAID 0/1/5 GPIO 1 x 4-bit GPIO (Default 4 inputs and 4 outputs) Watchdog Timer Output & Interval System Reset, Programmable via Software from 1 to 255 Seconds Security TPM Available Upon Request Power Type 12V, 5VSB, VCC_RTC (ATX mode) 12V, VCC_RTC (AT mode) Consumption TBD OS Support OS Support Windows 7 Ultimate x86 & SP1 (32-bit) Windows 7 Ultimate x64 & SP1 (64-bit) Windows 8 Enterprise x86 (32-bit) Windows 8 Enterprise x64 (64-bit) Windows 8.1 Enterprise x86 (32-bit) Windows 8.1 Enterprise x64 (64-bit) Environment Temperature Operating: 0 to 60°C Storage: -20°C to 85°C Humidity Operating: 5 to 90% RH Storage: 5 to 90% RH MTBF 680,852 hrs @ 25°C; 381,340 hrs @ 45°C Calculation model: Telcordia Issue 2, Method I Case 3 Environment: GB, GC ? Ground Benign, Controlled Mechanism Dimensions COM Express® Compact 95mm (3.74") x 95mm (3.74") Compliance PICMG COM Express® R2.1, Type 6 Standards and Certifications Certifications CE, FCC, RoHS Packing List Packing List 1 HU968 board Heat spreader with heat sink and fan: 761-HU9681-000G
