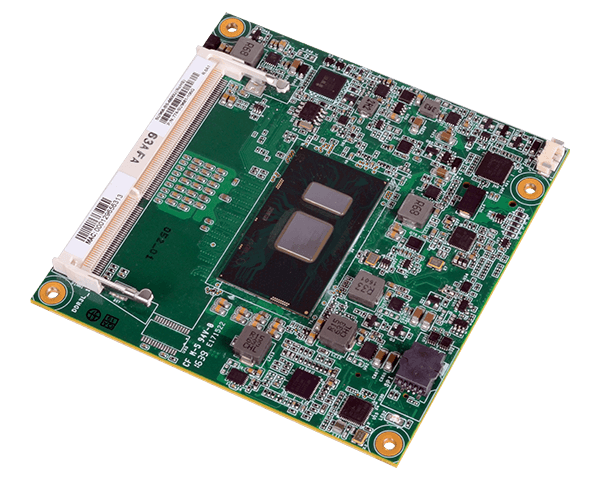

| SU968 / COM EXPRESS TYPE 6 | 산업용보드 > COM EXP Mini | 0 |
|---|---|---|
|
제품문의 02-3016-2464 http://www.wjubc.co.kr
6th Gen Intel® Core™ Rich I/O: 1 Intel GbE, 4 USB 3.0, 8 USB 2.0 Multiple expansion: 8 PCIe x1, 1 LPC, 1 I2C, 1 SMBus Three independent displays: VGA*/DDI + LVDS*/eDP + DDI Dual channel DDR3L 1600MHz SODIMM up to 16GB 15 Years CPU Life Cycle Support ? System Processor 6th Generation Intel® Core™ Processors, BGA 1356 Intel® Core™ i7-6600U Processor, Dual Core, 4M Cache, 2.6GHz (3.4GHz), 15W Intel® Core™ i5-6300U Processor, Dual Core, 3M Cache, 2.4GHz (3.0GHz), 15W Intel® Core™ i3-6100U Processor, Dual Core, 3M Cache, 2.3GHz, 15W Intel® Celeron® Processor 3955U, Dual Core, 2M Cache, 2.0GHz, 15W Memory Two 204-pin SODIMM up to 16GB Dual Channel DDR3L 1600MHz BIOS Insyde SPI 128Mbit Graphics Controller Intel® HD Graphics Feature OpenGL 5.0, DirectX 12, OpenCL 2.1 HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9 HW Encode: AVC/H.264, MPEG2, JPEG, HEVC/H265, VP8, VP9 Display 1 x VGA/DDI (DDI available upon request) 1 x LVDS/eDP (eDP available upon request) 1 x DDI VGA: resolution up to 1920x1200 @ 60Hz LVDS: dual channel 24-bit, resolution up to 1920x1200 @ 60Hz HDMI: resolution up to 4096x2160 @ 24Hz or 2560x1600 @ 60Hz DP++: resolution up to 4096x2304 @ 60Hz eDP: resolution up to 4096x2304 @ 60Hz Triple Displays VGA + LVDS + DDI DDI + eDP + DDI Expansion Interface 5 PCIe x1 or 4 PCIe x1 + 1 PCIe x4 or 3 PCIe x1 + 2 PCIe x2 (support up to 5 devices and 8 lanes) 1 x LPC 1 x I2C 1 x SMBus 2 x UART (TX/RX) Audio Interface HD Audio Ethernet Controller 1 x Intel® I219LM with iAMT11.0 PCIe (10/100/1000Mbps) (only Core i7/i5 supports iAMT) I/O USB 4 x USB 3.0 8 x USB 2.0 SATA 3 x SATA 3.0 (up to 6Gb/s) RAID 0/1/5/10 DIO 1 x 8-bit DIO Watchdog Timer Output & Interval System Reset, Programmable via Software from 1 to 255 Seconds Security TPM Available Upon Request Power Type 12V, 5VSB, VCC_RTC (ATX mode) 12V, VCC_RTC (AT mode) Consumption Typical: I7-6600U: 12V @ 0.86A (10.28Watt) Max.: I7-6600U: 12V @ 1.372A (16.46Watt) OS Support OS Support Windows 7/WES7 (32/64-bit) Windows 8.1 (64-bit) Windows 10 IoT Enterprise (64-bit) Ubuntu 16.04 (Intel graphic driver available) Environment Temperature Operating: 0 to 60°C, -40 to 85°C (with heat spreader) Storage: -40 to 85°C Humidity Operating: 5 to 90% RH Storage: 5 to 90% RH MTBF 921,923 hrs @ 25°C; 460,715 hrs @ 45°C; 256,677 hrs @ 60°C Calculation Model: Telcordia Issue 2, Method Case 3 Environment: GB, GC ? Ground Benign, Controlled Mechanism Dimensions COM Express® Compact 95mm (3.74") x 95mm (3.74") Compliance PICMG COM Express® R2.1, Type 6 Packing List Packing List 1 SU968 board 1 Heat sink (Height: 23.8mm): A71-011060-000G
