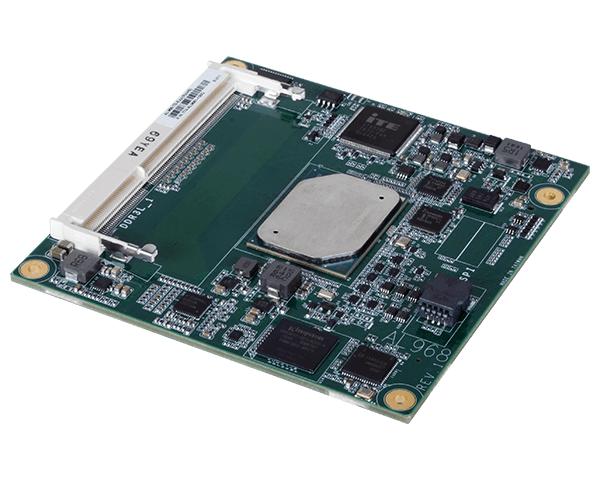

| AL968 / COM EXPRESS TYPE 6 | 산업용보드 > COM EXP Mini | 0 |
|---|---|---|
|
제품문의 02-3016-2464 http://www.wjubc.co.kr
Intel Atom® E3900 Series Dual channel DDR3L 1600MHz SODIMM up to 8GB Three independent displays: VGA*/DDI + LVDS*/eDP + DDI Multiple expansion: 4 PCIe x1, 1 LPC, 1 I2C, 1 SMBus, eMMC Rich I/O: 1 Intel GbE, 4 USB 3.0, 8 USB 2.0, 2 SATA 3.0 15-Year CPU Life Cycle Support ? System Processor Intel Atom® Processor E3900 Series, BGA 1296 Intel Atom® x7-E3950 Processor, Quad Core, 2M Cache, 1.6GHz (2.0GHz), 12W Intel Atom® x5-E3940 Processor, Quad Core, 2M Cache, 1.6GHz (1.8GHz), 9.5W Intel Atom® x5-E3930 Processor, Dual Core, 2M Cache, 1.3GHz (1.8GHz), 6.5W Intel® Pentium® Processor N4200, Quad Core, 2M Cache, 1.1GHz (2.5GHz), 6W Intel® Celeron® Processor N3350, Dual Core, 2M Cache, 1.1GHz (2.4GHz), 6W Memory Two 204-pin SODIMM up to 8GB Dual Channel DDR3L 1600MHz BIOS Insyde SPI 128Mbit (supports UEFI boot only) Graphics Controller Intel® HD Graphics Feature OpenGL 5.0, DirectX 12, OpenCL 2.1 HW Decode: AVC/H.264, MPEG2, VC1, WMV9, JPEG/MJPEG, HEVC/H.265, VP8, VP9, MVC HW Encode: AVC/H.264, JPEG/MJPEG, HEVC/H.265, VP8, VP9, MVC Display 1 x VGA/DDI (DDI available upon request) 1 x LVDS/eDP (eDP available upon request) 1 x DDI VGA: resolution up to 1920x1200 @ 60Hz LVDS: dual channel 24-bit, resolution up to 1920x1200 @ 60Hz eDP: resolution up to 3840x2160 @ 60Hz HDMI: resolution up to 3840x2160 @ 30Hz DP++: resolution up to 4096x2160 @ 60Hz VGA + LVDS + DDI DDI + eDP + DDI (available upon request) Expansion Interface 4 x PCIe x1 (Gen 2) 1 x SDIO (available upon request) 1 x LPC 1 x I2C 1 x SMBus 1 x SPI 2 x UART (TX/RX) Audio Interface HD Audio Ethernet Controller 1 x Intel® I211AT (10/100/1000Mbps) (0°C to 60°C) or 1 x Intel® I210IT (10/100/1000Mbps) (-40°C to 85°C) I/O USB 4 x USB 3.0 8 x USB 2.0 SATA 2 x SATA 3.0 (up to 6Gb/s) eMMC 1 x 8GB/16GB/32GB eMMC (available upon request) DIO 1 x 8-bit DIO Watchdog Timer Output & Interval System Reset, Programmable via Software from 1 to 255 Seconds Security TPM Available Upon Request Power Type 12V, 5VSB, VCC_RTC (ATX mode) 12V, VCC_RTC (AT mode) Consumption TBD OS Support OS Support (UEFI Only) Windows: Windows 10 IoT Enterprise 64-bit Linux: Ubuntu 15.10 (Intel® graphic driver available) Environment Temperature Operating: 0 to 60°C, -40 to 85°C Storage: -40 to 85°C Humidity Operating: 10 to 90% RH Storage: 10 to 90% RH MTBF TBD Mechanism Dimensions COM Express® Compact 95mm (3.74") x 95mm (3.74") Compliance PICMG COM Express® R2.1, Type 6 Standards and Certifications Certifications CE, FCC Packing List Packing List 1 AL968 board 1 Heat sink (Height: 22.6mm) for 500G~800G: A71-008104-000G; for 900G: A71-008104-010G
