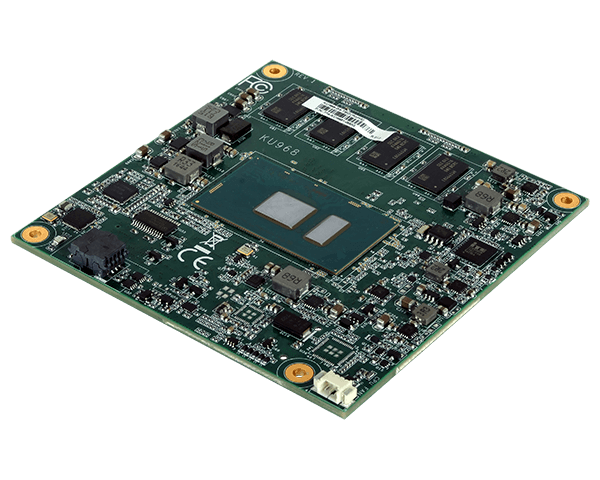

| KU968 / COM EXPRESS TYPE 6 | 산업용보드 > COM EXP Mini | 0 |
|---|---|---|
|
제품문의 02-3016-2464 http://www.wjubc.co.kr
7th Gen Intel® Core™ Rich I/O: 1 Intel GbE, 4 USB 3.0, 8 USB 2.0 Multiple expansion: 8 PCIe x1, 1 LPC, 1 I2C, 1 SMBus Three independent displays: VGA*/DDI + LVDS*/eDP + DDI Dual channel DDR4 2133MHz memory down up to 16GB 15-Year CPU Life Cycle Support ? System Processor 7th Generation Intel® Core™ Processors, BGA 1356 Intel® Core™ i7-7600U Processor, Dual Core, 4M Cache, 2.8GHz (3.9GHz), 15W Intel® Core™ i5-7300U Processor, Dual Core, 3M Cache, 2.6GHz (3.5GHz), 15W Intel® Core™ i3-7100U Processor, Dual Core, 3M Cache, 2.4GHz, 15W Intel® Celeron® Processor 3965, Dual Core, 2M Cache, 2.2GHz, 15W Memory 4GB/8GB/16GB DDR4 Memory Down Dual Channel DDR4 2133MHz BIOS Insyde SPI 128Mbit Graphics Controller Intel® HD Graphics Feature OpenGL 5.0, DirectX 12, OpenCL 2.1 HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9 HW Encode: AVC/H.264, MPEG2, JPEG, HEVC/H265, VP8, VP9 Display 1 x VGA/DDI (DDI available upon request) 1 x LVDS/eDP (eDP available upon request) 1 x DDI VGA: resolution up to 1920x1200 @ 60Hz LVDS: dual channel 24-bit, resolution up to 1920x1200 @ 60Hz eDP: resolution up to 4096x2304 @ 60Hz HDMI: resolution up to 4096x2160 @ 30Hz DP++: resolution up to 4096x2304 @ 60Hz Triple Displays VGA + LVDS + DDI DDI + eDP + DDI Expansion Interface 5 PCIe x1 or 4 PCIe x1 + 1 PCIe x4 or 3 PCIe x1 + 2 PCIe x2 (support up to 5 devices and 8 lanes) 1 x LPC 1 x I2C 1 x SMBus 2 x UART (TX/RX) Audio Interface HD Audio Ethernet Controller 1 x Intel® I219LM with iAMT11.0 PCIe (10/100/1000Mbps) I/O USB 4 x USB 3.0 8 x USB 2.0 SATA 3 x SATA 3.0 (up to 6Gb/s) RAID 0/1/5 DIO 1 x 8-bit DIO Watchdog Timer Output & Interval System Reset, Programmable via Software from 1 to 255 Seconds Security TPM Available Upon Request Power Type 12V, 5VSB, VCC_RTC (ATX mode) 12V, VCC_RTC (AT mode) Consumption Typical: 3965U: 12V @ 0.2134A (2.5608W) Max.: 3965U: 12V @ 1.3592A (16.3104W) OS Support OS Support Windows: Windows 10 IoT Enterprise 64-bit Linux: Yocto Project v2.2 Environment Temperature Operating: 0 to 60°C -40 to 85°C (with heat spreader) Storage: -40 to 85°C Humidity Operating: 5 to 90% RH Storage: 5 to 90% RH MTBF 866,065 hrs @ 25°C; 422,194 hrs @ 45°C; 238,613 hrs @ 60°C Calculation Model: Telcordia Issue 2 Environment: GB, GC ? Ground Benign, Controlled Mechanism Dimensions COM Express® Compact 95mm (3.74") x 95mm (3.74") Compliance PICMG COM Express® R2.1, Type 6 Standards and Certifications Certifications CE, FCC, RoHS Packing List Packing List 1 KU968 board 1 Heat sink (Height: 23.8mm): A71-011060-000G
