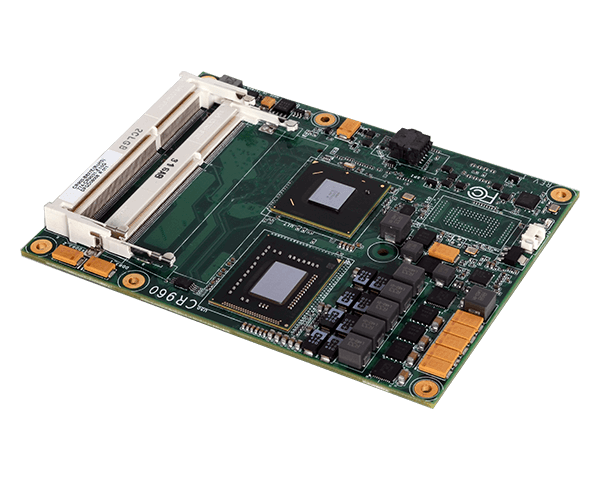

| CR960-QM77 / COM EXPRESS TYPE 6 | 산업용보드 > COM EXP Mini | 0 |
|---|---|---|
|
제품문의 02-3016-2464 http://www.wjubc.co.kr
3rd Gen Intel® Core™, Intel® QM77 Chipset Rich I/O: 1 Intel GbE, 4 USB 3.0, 8 USB 2.0 Multiple expansion: 1 PCIe x16, 4 SATA, 1 LPC, 1 I2C, 1 SMBus 1 VGA, 1 LVDS, 3 DDI (HDMI/DVI/DP/SDVO) Dual channel DDR3L 1600MHz SODIMM up to 16GB 7-Year CPU Life Cycle Support ? System Processor 3rd generation Intel® Core™ processors series, BGA 1023 Intel® Core™ i7-3615QE, 6M Cache, 2.3GHz (3.3GHz), 45W Intel® Core™ i7-3612QE, 6M Cache, 2.1GHz (3.1GHz), 35W Intel® Core™ i7-3555LE, 4M Cache, 2.5GHz (3.2GHz), 25W Intel® Core™ i7-3517UE, 4M Cache, 1.7GHz (2.8GHz), 17W Intel® Core™ i5-3610ME, 3M Cache, 2.7GHz (3.3GHz), 35W Intel® Core™ i3-3120ME, 3M Cache, 2.4GHz, 35W Chipset Intel® QM77 Chipset Memory Two 204-pin SODIMM up to 16GB Dual Channel DDR3L 1600MHz BIOS 64Mbit SPI Graphics Controller Intel® HD Graphics 4000 Feature DirectX Video Acceleration (DXVA) for accelerating video processing - Full AVC/VC1/MPEG2 HW Decode Supports DirectX 11/10.1/10/9 and OpenGL 3.0 Display 1 x VGA 1 x LVDS 3 x DDI (HDMI/DVI/DP/SDVO) VGA: resolution up to 2048x1536 @ 75Hz LVDS: dual channel 36/48-bit, resolution up to 1920x1200 @ 60Hz HDMI/DVI/DP: resolution up to 1920x1200 @ 60Hz Expansion Interface 1 x PCIe x16 7 x PCIe x1 1 x LPC 1 x I2C 1 x SMBus 2 x Serial (TX/RX) Audio Interface HD Audio Ethernet Controller 1 x Intel® 82579LM (10/100/1000Mbps) I/O USB 4 x USB 3.0 8 x USB 2.0 SATA 2 x SATA 3.0 (up to 6Gb/s) RAID 0/1/5/10 2 x SATA 2.0 (up to 3Gb/s) SSD 1 x 2GB/8GB/16GB/32GB/64GB SSD (available upon request) GPIO 1 x 8-bit GPIO Watchdog Timer Output & Interval System Reset, Programmable via Software from 1 to 255 Seconds Security TPM Available Upon Request Power Type 4.75V~20V, 5VSB, VCC_RTC (ATX mode) 4.75V~20V, VCC_RTC (AT mode) Consumption CR960-QM77BS0-3120ME: 45.46W with i3-3120ME at 2.4GHz and 2 x 4GB DDR3L SODIMM OS Support OS Support Windows XP Professional x86 & SP3 (32-bit) Windows XP Professional x64 & SP2 (64-bit) Windows 7 Ultimate x86 & SP1 (32-bit) Windows 7 Ultimate x64 & SP1 (64-bit) Windows 8 Enterprise x86 (32-bit) Windows 8 Enterprise x64 (64-bit) Environment Temperature Operating: 0 to 60°C Storage: -20 to 85°C Humidity Operating: 10 to 90% RH Storage: 10 to 90% RH MTBF TBD Mechanism Dimensions COM Express® Basic 95mm (3.74") x 125mm (4.9") Compliance PICMG COM Express® R2.1, Type 6 Packing List Packing List 1 CR960 board Heat spreader with heat sink and fan: 761-CR9601-000G
