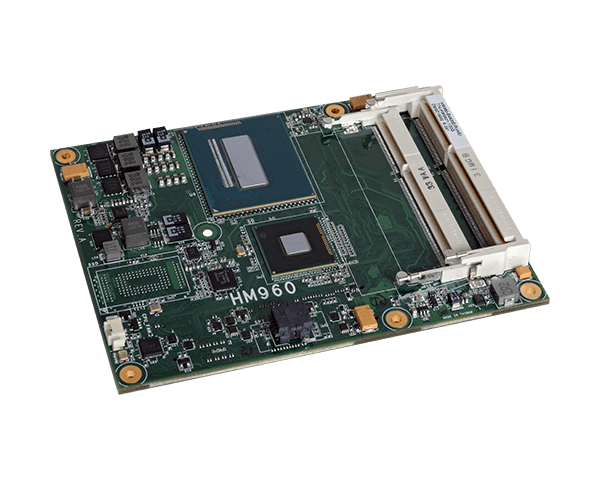

| HM960-QM87 / COM EXPRESS TYPE 6 | 산업용보드 > COM EXP Mini | 0 |
|---|---|---|
|
제품문의 02-3016-2464 http://www.wjubc.co.kr
4th Gen Intel® Core™, Intel® QM87 Chipset Rich I/O: 1 Intel GbE, 4 USB 3.0, 8 USB 2.0 Multiple expansion: 1 PCIe x16, 4 SATA 3.0, 1 LPC, 1 I2C, 1 SMBus 1 VGA, 1 LVDS, 3 DDI Dual channel DDR3L 1600MHz SODIMM up to 16GB 7-Year CPU Life Cycle Support ? System Processor 4th generation Intel® Core™ processors, BGA 1364 Intel® Core™ i7-4700EQ, 6M Cache, 2.4GHz (3.4GHz), 47W Intel® Core™ i5-4400E, 3M Cache, 2.7GHz (3.3GHz), 37W Intel® Core™ i5-4402E, 3M Cache, 1.6GHz (2.7GHz), 25W Intel® Core™ i3-4100E, 3M Cache, 2.4GHz, 37W Intel® Core™ i3-4102E, 3M Cache, 1.6GHz, 25W Chipset Intel® QM87 Chipset Memory Two 204-pin SODIMM up to 16GB Dual Channel DDR3L 1600MHz BIOS AMI 64Mbit SPI Graphics Controller Intel® HD Graphics 4600 Feature OpenGL up to 4.0, DirectX 11.1, OpenCL 1.2 Display 1 x VGA 1 x LVDS 3 x DDI (HDMI/DVI/DP) VGA: resolution up to 2048x1536 @ 75Hz LVDS: dual channel 24-bit, resolution up to 1920x1200 @ 60Hz HDMI: resolution up to 4096x2160 @ 24Hz or 2560x1600 @ 60Hz DVI: resolution up to 1920x1200 @ 60Hz DP: resolution up to 3840x2160 @ 60Hz Expansion Interface 1 x PCIe x16 (Gen 3) 7 x PCIe x1 1 x LPC 1 x I2C 1 x SMBus 2 x Serial (TX/RX) Audio Interface HD Audio Ethernet Controller 1 x Intel® I217LM with iAMT9.0 (10/100/1000Mbps) I/O USB 4 x USB 3.0 8 x USB 3.0 SATA 4 x SATA 3.0 (up to 6Gb/s) RAID 0/1/5/10 GPIO 1 x 4-bit GPIO (Default 4 inputs and 4 outputs) Watchdog Timer Output & Interval System Reset, Programmable via Software from 1 to 255 Seconds Security TPM Available Upon Request Power Type 12V, 5VSB, VCC_RTC (ATX mode) 12V, VCC_RTC (AT mode) Consumption TBD OS Support OS Support Windows XP Professional x86 & SP3 (32-bit) (limited function) Windows 7 Ultimate x86 & SP1 (32-bit) Windows 7 Ultimate x64 & SP1 (64-bit) Windows 8 Enterprise x86 (32-bit) Windows 8 Enterprise x64 (64-bit) Environment Temperature Operating: 0 to 60°C Storage: -20°C to 85°C Humidity Operating: 5 to 90% RH Storage: 5 to 90% RH MTBF 688,851 hrs @ 25°C; 397,149 hrs @ 45°C Calculation model: Telcordia Issue 2, Method I Case 3 Environment: GB, GC ? Ground Benign, Controlled Mechanism Dimensions COM Express® Basic 95mm (3.74") x 125mm (4.9") Compliance PICMG COM Express® R2.1, Type 6 Standards and Certifications Certifications CE, FCC Class B, RoHS Packing List Packing List 1 HM960 board Heat spreader with heat sink and fan: 761-HSWMBL-000G
