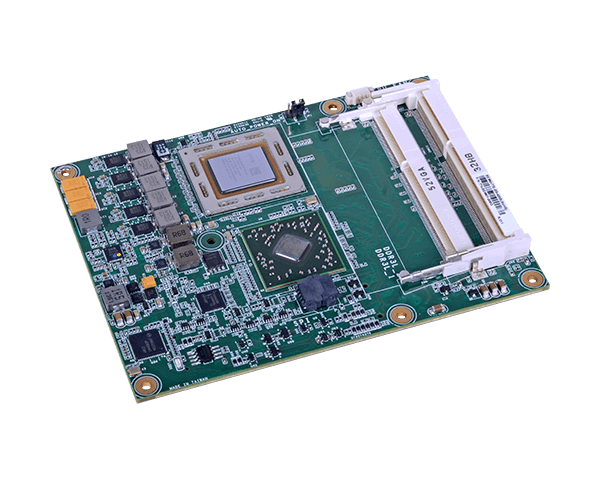

| BE960 / COM EXPRESS TYPE 6 | 산업용보드 > COM EXP Mini | 0 |
|---|---|---|
|
제품문의 02-3016-2464 http://www.wjubc.co.kr
2nd Gen AMD® R-Series, AMD® A77E Rich I/O: 1 Intel GbE, 4 USB 3.0, 8 USB 2.0 Multiple expansion: 1 PCIe x16, 7 PCIe x1, 1 LPC, 1 I2C, 1 SMBus Four independent displays: VGA*/DDI + LVDS*/eDP + 2 DDI Dual Channel DDR3L 1866MHz SODIMM up to 16GB 5-Year CPU Life Cycle Support ? System Processor 2nd Generation AMD® Embedded R-Series APUs, FP3 BGA AMD® RX-427BB, Quad Core, 4M Cache, 2.7GHz (3.6GHz), 35W AMD® RX-425BB, Quad Core, 4M Cache, 2.5GHz (3.4GHz), 35W Chipset AMD® A77E Fusion Controller Hub Memory Two 204-pin SODIMM up to 16GB Dual Channel DDR3L 1866MHz BIOS AMI SPI 64Mbit Graphics Controller AMD Radeon™ HD 9000 Series Graphics Feature OpenGL 4.2, OpenGL 3.1, Direct X 11.1, OpenCL 1.2 HW Decode: H.264, MPEG2, VC-1, MPEG4 (DivX), WMV HW Encode: H.264 Display 1 x VGA/DDI (DDI available upon request) 1 x LVDS/eDP (eDP available upon request) 2 x DDI (HDMI/DVI/DP++) VGA: resolution up to 2048x1536 @ 75Hz LVDS: dual channel 24-bit, resolution up to 1920x1200 @ 60Hz eDP: resolution up to 1920x1080 @ 60Hz HDMI: resolution up to 4096x2160 @ 24Hz or 1920x1080 @ 60Hz DVI: resolution up to 1920x1200 @ 60Hz DP++: resolution up to 3840x2160 @ 30Hz Quad Displays VGA + LVDS + 2 DDI eDP + 3 DDI Expansion Interface 1 x PCIe x16 (Gen 3) 7 x PCIe x1 or 1 x PCIe x4 + 3 x PCIe x1 (Gen 2) 1 x LPC 1 x I2C 1 x SMBus 2 x Serial (TX/RX) Audio Interface HD Audio Ethernet Controller 1 x Intel® I210AT PCIe (10/100/1000Mbps) I/O USB 4 x USB 3.0 8 x USB 2.0 SATA 4 x SATA 3.0 (up to 6Gb/s) DIO 1 x 8-bit DIO Watchdog Timer Output & Interval System Reset, Programmable via Software from 1 to 255 Seconds Security TPM Available Upon Request Power Type 12V, 5VSB, VCC_RTC (ATX mode) 12V, VCC_RTC (AT mode) Consumption Typical: RX-427BB: 12V @ 1.33A (15.95Watt) Max.: RX-427BB: 12V @ 3.35A (40.18Watt) OS Support OS Support Windows 8.1 64-bit Windows 7 (/WES7) 32/64-bit Windows 10 IoT Enterprise 64-bit Debian 8 (with VESA graphic driver) CentOS 7 (with VESA graphic driver) Ubuntu 15.10 (Intel graphic driver available) Environment Temperature Operating: 0 to 60°C Storage: -40 to 85°C Humidity Operating: 10 to 90% RH Storage: 10 to 90% RH MTBF 822,620 hrs @ 25°C; 467,324 hrs @ 45°C; 293,581 hrs @ 60°C excluding accessories Calculation Model: Telcordia Issue 2, Method Case 3 Environment: GB, GC ? Ground Benign, Controlled Mechanism Dimensions COM Express® Basic 95mm (3.74") x 125mm (4.9") Compliance PICMG COM Express® R2.1, Type 6 Packing List Packing List 1 BE960 Board 1 Cooler (Height: 36.58mm): A71-111026-000G
