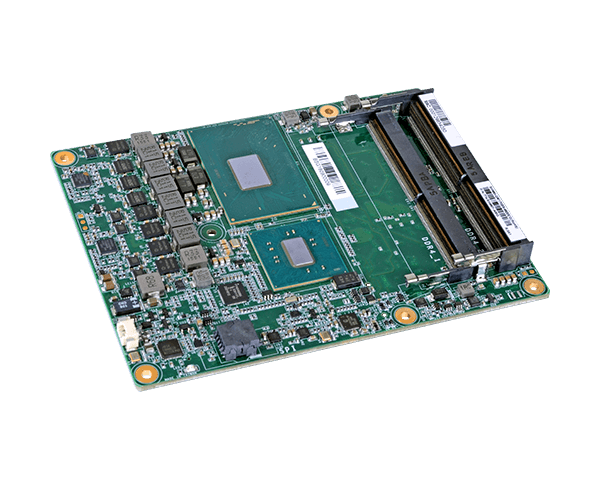

| SH960-HM170 / COM EXPRESS TYPE 6 | 산업용보드 > COM EXP Mini | 0 |
|---|---|---|
|
제품문의 02-3016-2464 http://www.wjubc.co.kr
6th Gen Intel® Core™, Intel® HM170 Chipset Rich I/O: 1 Intel GbE, 4 USB 3.0, 8 USB 2.0 Multiple expansion: 1 PCIe x16, 8 PCIe x1 Four display ports: VGA*/DDI + LVDS*/eDP + 2 DDI Supports three independent displays Dual channel DDR4 2133MHz SODIMM up to 32GB 7-Year CPU Life Cycle Support ? System Processor 6th Generation Intel® Core™ Processors, BGA 1440 Intel® Core™ i7-6820EQ Processor, Quad Core, 8M Cache, 2.8GHz (3.5GHz), 45W Intel® Core™ i7-6822EQ Processor, Quad Core, 8M Cache, 2.0GHz (2.8GHz), 25W Intel® Core™ i5-6440EQ Processor, Quad Core, 6M Cache, 2.7GHz (3.4GHz), 45W Intel® Core™ i5-6442EQ Processor, Quad Core, 6M Cache, 1.9GHz (2.7GHz), 25W Intel® Core™ i3-6100E Processor, Dual Core, 3M Cache, 2.7GHz, 35W Intel® Core™ i3-6102E Processor, Dual Core, 3M Cache, 1.9GHz, 25W Intel® Celeron® Processor G3900E, Dual Core, 2M Cache, 2.4GHz, 35W Intel® Celeron® Processor G3902E, Dual Core, 2M Cache, 1.6GHz, 25W Chipset Intel® HM170 Chipset Memory Two 260-pin SODIMM up to 32GB Dual Channel DDR4 2133MHz BIOS Insyde SPI 128Mbit Graphics Controller Intel® HD Graphics GT Series Feature OpenGL up to 4.4, DirectX 12, OpenCL 2.1 HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9 HW Encode: AVC/H.264, MPEG2, JPEG, HEVC/H265, VP8, VP9 Display 1 x VGA/DDI (DDI available upon request) 1 x LVDS/eDP (eDP available upon request) 2 x DDI (HDMI/DVI/DP++) VGA: resolution up to 1920x1200 @ 60Hz LVDS: dual channel 24-bit, resolution up to 1920x1200 @ 60Hz HDMI: resolution up to 4096x2160 @ 24Hz or 2560x1600 @ 60Hz DVI: resolution up to 1920x1200 @ 60Hz DP++/eDP: resolution up to 4096x2304 @ 60Hz Triple Displays VGA + LVDS + DDI or VGA + DDI1 + DDI2 eDP + 2 DDI (available upon request) Expansion Interface 1 x PCIe x16 or 2 x PCIe x8 (Gen 3) 8 x PCIe x1 or 2 x PCIe x4 or 4 x PCIe x2 (Gen 3) 1 x LPC 1 x I2C 1 x SMBus 2 x UART (TX/RX) Audio Interface HD Audio Ethernet Controller 1 x Intel® I219LM with iAMT11.0 PCIe (10/100/1000Mbps) I/O USB 4 x USB 3.0 8 x USB 2.0 SATA 4 x SATA 3.0 (up to 6Gb/s) RAID 0/1/5/10 DIO 1 x 8-bit DIO Watchdog Timer Output & Interval System Reset, Programmable via Software from 1 to 255 Seconds Security TPM Available Upon Request Power Type 12V, 5VSB, VCC_RTC (ATX mode) 12V, VCC_RTC (AT mode) Consumption TBD OS Support OS Support Windows 7 (/WES7) 32/64-bit Windows 8.1 (64-bit) Windows 10 IoT Enterprise 64-bit Debian 8 (with VESA graphic driver) CentOS 7 (with VESA graphic driver) Ubuntu 15.10 (Intel graphic driver available) Environment Temperature Operating: 0 to 60°C, -40 to 85°C (with heat spreader) Storage: -40 to 85°C Humidity Operating: 5 to 90% RH Storage: 5 to 90% RH MTBF 663,394hrs @ 25°C; 334,612 hrs @ 45°C; 193,307 hrs @ 60°C excluding accessories Calculation Model: Telcordia Issue 2, Method Case 3 Environment: GB, GC ? Ground Benign, Controlled Mechanism Dimensions COM Express® Basic 95mm (3.74") x 125mm (4.9") Compliance PICMG COM Express® R2.1, Type 6 Standards and Certifications Certifications CE, FCC Packing List Packing List 1 SH960-HM170 board 1 Cooler (Height: 36.58mm): A71-111026-000G
