| DV970 / COM EXPRESS TYPE 7 | 산업용보드 > COM EXP Mini | 0 |
|---|---|---|
|
제품문의 02-3016-2464 http://www.wjubc.co.kr

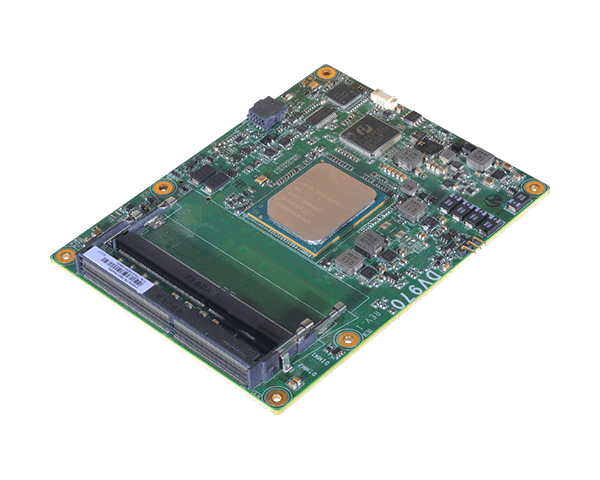

Intel Atom® C3000 Series Rich I/O: 1 Intel GbE, 4 10Gbase-KR, 2 USB 3.0, 4 USB 2.0 Multiple expansion: 2 PCIe x 8, 2 SATA 3.0 Support BMC features Dual channel DDR4 2400MHz SODIMM up to 32GB 15-Year CPU Life Cycle Support ? System Processor Intel Atom® Processor C3000 Series, BGA1310 Intel Atom® C3958 Processor, 16 Cores, 16M Cache, 2.0GHz, 31W Intel Atom® C3808 Processor, 12 Cores, 12M Cache, 2.0GHz, 25W Intel Atom® C3708 Processor, 8 Cores, 16M Cache, 1.7GHz, 17W Memory Two 260-pin ECC SODIMM up to 32GB Dual Channel DDR4 2400MHz (Memory max speed depends on CPU SKU) BIOS Insyde SPI 128Mbit Expansion Interface Default: B1: 2 x PCIe x2 or 2 x PCIe x1 (Gen 3) B2: 1 x PCIe x2 (Gen 3) + 1 x PCIe x1 (Gen 2) or 2 x PCIe x1 (Lane 8 Gen 3, Lane 12 Gen 2) B3: 1 x PCIe x8 or 2 x PCIe x4 or 2 x PCIe x2 or 2 x PCIe x1 (Gen 3) Option 1: B1: 1 x PCIe x8 or 2 x PCIe x4 or 2 x PCIe x2 or 2 x PCIe x1 (Gen 3) B3: 2 x PCIe x2 or 2 x PCIe x1 (Gen 3) B4: 2 x PCIe x2 or 2 x PCIe x1 (Gen 3) 1 x LPC 1 x I2C 1 x SMBus 2 x UART (TX/RX) Ethernet Controller PHY for X557 or CS4227/CS4223 and Controller for Intel® I210AT/Intel® I210IT 2 x Independent 10GbE Media Access Controller (Sku dependent) Supports up to Two 10GBASE-KR Interfaces and Max up to Four 10GbE MAC Ports Supports Intel® X557-AT/AT2/AT4 10GbE PHY Supports Inphi CS4227 (2 port)/CS4223 (4 port) (maximum bandwidth is 20Gb when 4 ports of 10G interface active at the same time) 1 x Intel® I210AT (10/100/1000Mbps) (normal temp.) or 1 x Intel® I210IT (10/100/1000Mbps) (wide temp.) I/O USB 2 x USB 3.0 4 x USB 2.0 SATA 2 x SATA 3.0 (up to 6Gb/s) RAID 0/1/10 DIO 1 x 8-bit DIO (4 in, 4 out) Watchdog Timer Output & Interval System Reset, Programmable via Software from 15 to 255 Seconds Security TPM Available Upon Request Power Type 12V, 5VSB, VCC_RTC (ATX mode) 12V, VCC_RTC (AT mode) Consumption TBD OS Support OS Support Windows Server 2012 Windows Server 2016 Yocto Project v1.8/v2.0 Environment Temperature Operating: 0 to 60°C, -20 to 70°C (with heat spreader) Storage: -40 to 85°C Humidity Operating: 5 to 90% RH Storage: 5 to 90% RH MTBF TBD Mechanism Dimensions COM Express® Basic 95mm (3.74") x 125mm (4.9") Compliance PICMG COM Express® R3.0, Type 7 Packing List Packing List 1 DV970 board 1 DVD 1 Cooler (Height: TBD mm) TBD
