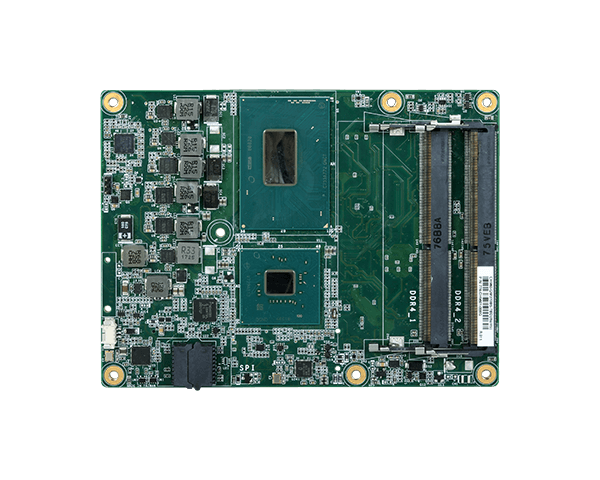

| CH960-CM246/QM370 / COM EXPRESS TYPE 6 | 산업용보드 > COM EXP Mini | 0 |
|---|---|---|
|
제품문의 02-3016-2464 http://www.wjubc.co.kr
Dual channel DDR4 2666MHz SODIMM up to 32GB Four display ports: VGA*/DDI + LVDS*/eDP + 2 DDI; Supports three independent displays eDP resolution supports up to 4096x2304 @ 60Hz Multiple expansion: 1 PCIe x16, 8 PCIe x1 Rich I/O: 1 Intel GbE, 4 USB 3.1, 8 USB 2.0 15-Year CPU Life Cycle Support ? System Processor 8th Generation Intel® Core™ Processors, BGA 1440 Intel® Xeon® E-2176M Processor, 6 Cores, 12M Cache, 2.7GHz (4.4GHz), 45W Intel® Core™ i7-8850H Processor, 6 Cores, 12M Cache, 2.6GHz (4.3GHz), 45W Intel® Core™ i5-8400H Processor, 4 Cores, 8M Cache, 2.5GHz (4.2GHz), 45W Intel® Core™ i3-8100H Processor, 4 Cores, 6M Cache, 3.0GHz, 45W Chipset Intel® CM246 Chipset Intel® QM370 Chipset Memory Two 260-pin SODIMM up to 32GB Dual Channel DDR4 2666MHz (ECC Support with CM246) BIOS AMI SPI 128Mbit Graphics Controller Intel® HD Graphics Feature OpenGL up to 4.5, DirectX 11, OpenCL 2.1 HW Decode: HEVC/H.265, H.264, M/JPEG, MPEG2, VC1/WMV9, VP8 (8-bit), VP9 (10-bit) HW Encode: HEVC/H.265, M/JPEG, MPEG2, VP8 Display 1 x VGA/DDI (DDI available upon request) 1 x LVDS/eDP (eDP available upon request) 2 x DDI (HDMI/DVI/DP++) VGA: resolution up to 1920x1200 @ 60Hz LVDS: dual channel 24-bit, resolution up to 1920x1200 @ 60Hz HDMI: resolution up to 4096x2160 @ 30Hz 24bpp DVI: resolution up to 1920x1200 @ 60Hz DP++/eDP: resolution up to 4096x2304 @ 60Hz Triple Displays VGA + LVDS + DDI or VGA + DDI 1 + DDI 2 eDP + 2 DDI (available upon request) Expansion Interface 1 x PCIe x16 or 2 x PCIe x8 (Gen 3) 8 x PCIe x1 or 2 x PCIe x4 or 4 x PCIe x2 (Gen 3) 1 x LPC 1 x I2C 1 x SMBus 2 x UART (TX/RX) Audio Interface HD Audio Ethernet Controller 1 x Intel® I219LM with iAMT12.0 PCIe (10/100/1000Mbps) I/O USB 4 x USB 3.1 8 x USB 2.0 SATA 4 x SATA 3.0 (up to 6Gb/s) RAID 0/1/5/10 DIO 1 x 8-bit DIO (Default 4 inputs and 4 outputs) Watchdog Timer Output & Interval System Reset, Programmable via Software from 1 to 255 Seconds Security TPM Available Upon Request Power Type 12V, 5VSB, VCC_RTC (ATX mode) 12V, VCC_RTC (AT mode) Consumption TBD OS Support OS Support Windows: Windows 10 IoT Enterprise 64-bit Linux: Ubuntu 18.04 Environment Temperature Operating: 0 to 60°C, -40 to 85°C (with heat spreader) Storage: -40 to 85°C Humidity Operating: 5 to 90% RH Storage: 5 to 90% RH MTBF TBD Mechanism Compliance PICMG COM Express® R2.1, Type 6 Dimensions (W x H x D) COM Express® Basic 95mm (3.74") x 125mm (4.9") Packing List Packing List 1 CH960-CM246/QM370 board 1 Cooler (Height: 36.58mm): Wide Temp: A71-111100-010G, Standard: A71-111100-000G
