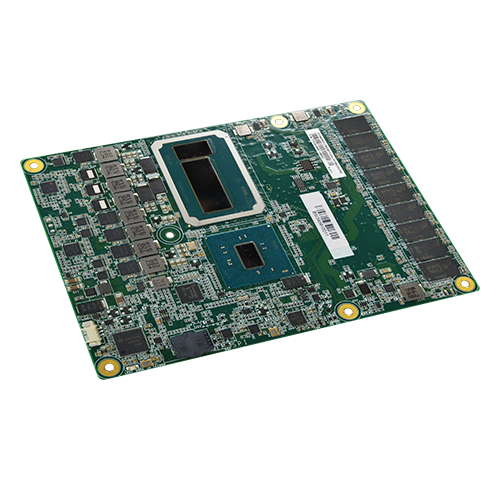

| SH960MD-CM236/QM170 / COM EXPRESS TYPE 6 | 산업용보드 > COM EXP Mini | 0 |
|---|---|---|
|
제품문의 02-3016-2464 http://www.wjubc.co.kr
Dual channel DDR4 2400MHz onboard Memory up to 16GB Four display ports: VGA*/DDI + LVDS*/eDP + 2 DDI Supports three independent displays eDP resolution supports up to 4096x2304 @ 60Hz Multiple expansion: 1 PCIe x16, 8 PCIe x1 Rich I/O: 1 Intel GbE, 4 USB 3.0, 8 USB 2.0 15-Year CPU Life Cycle Support ? Ethernet Controller 1 x Intel® I210IT with iAMT11.0 PCIe (10/100/1000Mbps) I/O USB 4 x USB 3.0 8 x USB 2.0 SATA 4 x SATA 3.0 (up to 6Gb/s) RAID 0/1/5/10 DIO 1 x 8-bit DIO Watchdog Timer Output & Interval System Reset, Programmable via Software from 1 to 255 Seconds Security TPM Available Upon Request Power Type 12V, 5VSB, VCC_RTC (ATX mode) 12V, VCC_RTC (AT mode) OS Support OS Support Windows 8.1 64-bit Windows 7 (/WES7) 32/64-bit Windows 10 IoT Enterprise 64-bit Debian 8 (with VESA graphic driver) CentOS 7 (with VESA graphic driver) Ubuntu 15.10 (Intel graphic driver available) Environment Temperature Operating: 0 to 60°C, -40 to 85°C (with heat spreader) Storage: -40 to 85°C Humidity Operating: 5 to 90% RH Storage: 5 to 90% RH MTBF 663,394hrs @ 25°C; 334,612 hrs @ 45°C; 193,307 hrs @ 60°C excluding accessories Calculation Model: Telcordia Issue 2, Method Case 3 Environment: GB, GC ? Ground Benign, Controlled Mechanism Dimensions COM Express® Basic 95mm (3.74") x 125mm (4.9") Compliance PICMG COM Express® R2.1, Type 6 Packing List Packing List 1 SH960MD-CM236/QM170 board 1 DVD 1 Cooler (Height: 36.58mm): A71-111101-000G
