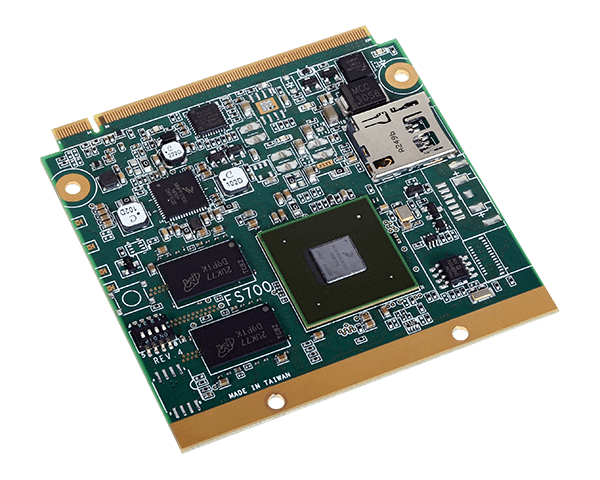

| FS700 / Qseven | 산업용보드 > COM EXP Mini | 0 |
|---|---|---|
|
제품문의 02-3016-2464 http://www.wjubc.co.kr
NXP i.MX 6 Series Rich I/O: 1 Intel GbE, 4 USB 2.0, 1 USB OTG Multiple expansions: 1 PCIe x1, 1 SATA 2.0, eMMC 1 HDMI, 2 LVDS 1GB/2GB DDR3 Single Channel Memory Down 15-Year CPU Life Cycle Support ? System Processor NXP i.MX 6 series processors i.MX6Q: i.MX 6Quad, up to 1.0GHz, Four Cortex-A9 cores i.MX6D: i.MX 6Dual, up to 1.0GHz, Two Cortex-A9 cores i.MX6L: i.MX 6DualLite, up to 1.0GHz, Two Cortex-A9 cores i.MX6S: i.MX 6Solo, up to 1.0GHz, One Cortex-A9 core Memory 1GB/2GB Single Channel DDR3 Memory Onboard Graphics Feature OpenCL, OpenVG 1.1 and 1080p/720p decoder/encoder Display 1 x HDMI 2 x LVDS HDMI: HDMI v1.4, resolution up to 1920x1200 @ 60Hz LVDS: 18/24-bit - One port up to 165 Mpixels/sec (e.g. 2560x1600 @ 60Hz) - Two ports up to 85 Mpixels/sec (e.g. WUXGA+ @ 60Hz) each Expansion Interface 1 x PCIe x1 2 x I2C 1 x Serial (RS232) 1 x SMBus 1 x CAN-Bus 1 x SDIO Audio Interface I2S interface Ethernet Controller 1 x Atheros AR8033 (10/100/1000Mbps) I/O USB 4 x USB 2.0 Supports 1 USB OTG (Type B) interface SATA 1 x SATA 2.0 (Quad and Dual processors only) eMMC 1 x 4GB*/8GB/16GB eMMC Watchdog Timer Output & Interval System Reset, Programmable via Software from 1 to 255 Seconds Power Type Input: 5V Consumption Under 5W @ 5V OS Support OS Support LTIB Linux 3.0.35 Android 4.3 (Default Preloaded) - Quad, Dual and DualLite processors only Environment Temperature Operating: -20°C to 70°C Storage: -30°C to 80°C Humidity Operating: 10 to 90% RH Storage: 10 to 90% RH MTBF TBD Mechanism Dimensions Qseven form factor 70mm (2.76") x 70mm (2.76") Compliance Qseven specification revision 1.2 Packing List Packing List 1 FS700 M60 Board 1 Heat spreader (for temperature -20°C to 70°C only)
