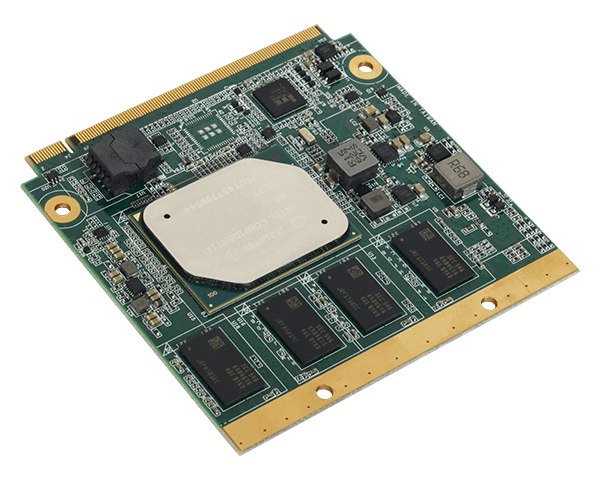

| AL700 / Qseven | 산업용보드 > COM EXP Mini | 0 |
|---|---|---|
|
제품문의 02-3016-2464 http://www.wjubc.co.kr
Intel Atom® E3900 Series Rich I/O: 1 Intel GbE, 1 USB 3.0, 8 USB 2.0 Multiple expansions: 4 PCIe x1 1 DDI*, 1 LVDS*/(eDP + DDI) Supports triple displays: eDP+2DDI 4GB/8GB DDR3L Dual Channel Memory Down 15-Year CPU Life Cycle Support ? System Processor Intel Atom® Processor E3900 Series, BGA 1296 Intel Atom® x7-E3950 Processor, Quad Core, 2M Cache, 1.6GHz (2.0GHz), 12W Intel Atom® x5-E3940 Processor, Quad Core, 2M Cache, 1.6GHz (1.8GHz), 9.5W Intel Atom® x5-E3930 Processor, Dual Core, 2M Cache, 1.3GHz (1.8GHz), 6.5W Intel® Pentium® Processor N4200, Quad Core, 2M Cache, 1.1GHz (2.5GHz), 6W Intel® Celeron® Processor N3350, Dual Core, 2M Cache, 1.1GHz (2.4GHz), 6W Memory 4GB/8GB DDR3L Memory Down Dual Channel DDR3L 1600MHz BIOS AMI SPI 128Mbit (supports UEFI boot only) Graphics Controller Intel® HD Graphics Gen9LP Series Feature OpenGL 5.0, DirectX 12, OpenCL 2.1 HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H.265, VP8, VP9, MVC HW Encode: AVC/H.264, JPEG/MJPEG, HEVC/H.265, VP8, VP9, MVC Display 1 x DDI (HDMI/DVI/DP++) 1 x LVDS/(eDP+DDI) (DDI available upon request) LVDS: NXP PTN3460, 24-bit, dual channel, resolution up to 1920x1200 @ 60Hz HDMI: resolution up to 3840x2160 @ 30 Hz DP++: resolution up to 4096x2160@60Hz eDP: resolution up to 3840x2160 @ 60Hz Dual Displays/ Triple Displays LVDS + DDI (Dual) eDP + DDI (Dual) eDP+2DDI (Triple) (available upon request) Expansion Interface 4 x PCIe x1 (Gen 2) 1 x SDIO (with LED) 1 x LPC 1 x I2C 1 x SMBus 1 x SPI 1 x UART (TX/RX) Audio Interface HD Audio Ethernet Controller 1 x Intel® I211AT (10/100/1000Mbps) (0~60°C) 1 x Intel® I210IT (10/100/1000Mbps) (-40 to 85°C) I/O USB 1 x USB 3.0 + 8 x USB 2.0 3 x USB 3.0 + 4 x USB 2.0 (option) SATA 2 x SATA 3.0 (up to 6Gb/s) eMMC Supports up to 32GB eMMC eMMC 5.0, BGA-153 Ball 8~32G (MLC mode) GPIO 1 x 4-bit GPIO Watchdog Timer Output & Interval System Reset, Programmable via Software from 1 to 255 Seconds Security FTPM Enables or Disables the BIOS support for the security device Power Type 5V, 5VSB, VCC_RTC Consumption Typical: E3940: 12V @ 0.53A (6.36W) Max.: E3940: 12V @ 1.78A (21.36W) OS Support OS Support (UEFI Only) Windows 10 IoT Enterprise 64-bit Ubuntu 15.10 (Intel graphic driver available) Environment Temperature Operating: 0 to 60°C, -40 to 85°C Storage: -40 to 85°C Humidity Operating: 5 to 90% RH Storage: 5 to 90% RH MTBF 1,020,531 hrs @ 25°C; 583,481 hrs @ 45°C; 364,855 hrs @ 60°C Calculation model: Telcordia Issue 2 Environment: GB, GC ? Ground Benign, Controlled Mechanism Dimensions Qseven form factor 70mm (2.76") x 70mm (2.76") Compliance Qseven specification revision 2.1 Standards and Certifications Certifications CE, FCC Class B, RoHS Packing List Packing List 1 AL700 board 1 Heat sink: TBD
