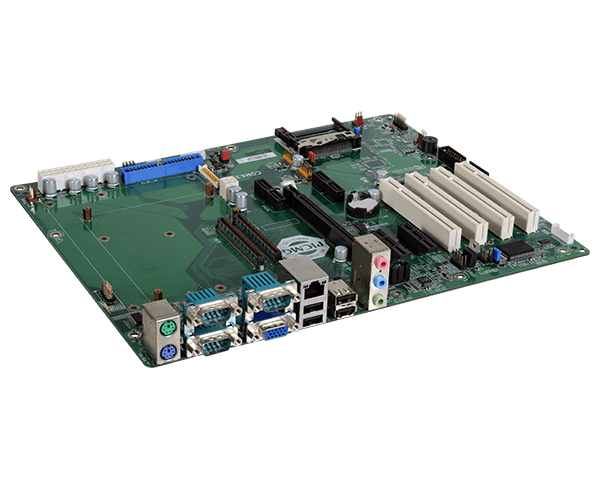

| COM630-B / ATX,BASIC/COMPACT MODULES | 산업용보드 > COM EXP Mini | 0 |
|---|---|---|
|
제품문의 02-3016-2464 http://www.wjubc.co.kr
COM Express® R1.0, Pin-out Type 2 Supports Compact/Basic modules Multiple displays: 1 LVDS, 1 VGA Rich I/O: 1 GbE, 8 USB 2.0, 4 COM ATX form factor ? Graphics Display 1 x VGA 1 x LVDS Expansion Interface 1 x PCIe x16 4 x PCIe x1 2 x PCI 1 x CompactFlash Socket Audio Audio Codec Realtek ALC262 Rear I/O Ethernet 1 x GbE (RJ-45) Serial 3 x DB-9 Serial Interface Connector USB 4 x USB 2.0 PS/2 2 x PS/2 Display 1 x VGA Audio 1 x Line-in 1 x Line-out 1 x Mic-in Internal I/O Serial 1 x DB-9 Serial Interface Connector USB 4 x USB 2.0 Display 1 x LVDS LCD Panel Connector 1 x LCD/Inverter Power Audio 1 x Audio (Line-out/Mic-in) 1 x CD-in 1 x S/PDIF SATA 4 x SATA 2.0 DIO 1 x 8-bit DIO Other I/O 1 x IDE 1 x FDD Power Type 12V, 5VSB, VCC_RTC (ATX mode) 12V, VCC_RTC (AT mode) Connector 4-pin ATX 12V power 24-pin ATX power Environment Temperature Operating: 0 to 60°C Storage: -20 to 85°C Humidity Operating: 5 to 90% RH Storage: 5 to 90% RH MTBF TBD Mechanism Dimensions ATX Form Factor 305mm (12") x 244mm (9.6") Compliance PICMG COM Express® R1.0, Type 2 Basic, Compact Modules Standards and Certifications Certifications CE, FCC Class B, RoHS, UL Packing List Packing List 1 COM630-B board 1 USB port cable 1 Serial ATA data cable 1 Serial ATA power cable 1 IDE cable 1 FDD cable 1 I/O shield
