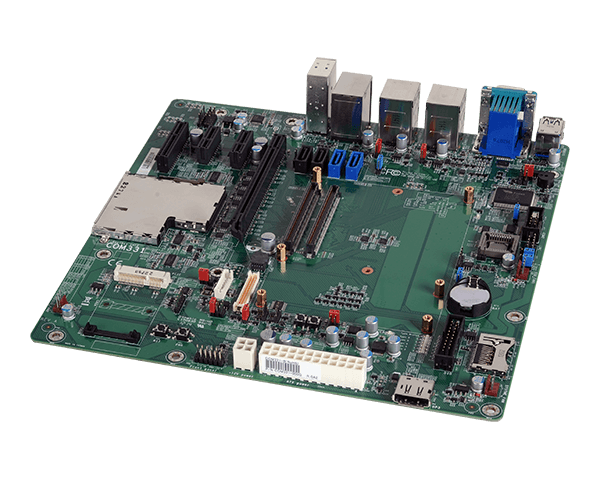

COM Express® R2.0, Pin-out Type 6 Supports Compact/Basic modules Multiple displays: 1 LVDS, 1 VGA, 2 DP Rich I/O: 1 GbE, 4 USB 3.0, 4 USB 2.0, 4 COM microATX form factor ? Graphics Display 1 x VGA 1 x LVDS 3 x DP Expansion Interface 1 x PCIe x16 (Gen 3) 1 x PCIe x4 (Gen 2) 2 PCIe x 1 1 x Full-size Mini PCIe Audio Audio Codec Realtek ALC886 Rear I/O Ethernet 1 x GbE (RJ-45) Serial 1 x RS232 serial ports 1 x RS232 Serial Interface Connector 2 x Serial Interface Connector (TX/RX) USB 4 x USB 3.0 4 x USB 2.0 Display 1 x VGA 2 x DP Audio 1 x Line-in 1 x Line-out 1 x Mic-in Internal I/O Serial 1 x RS232 Serial Interface Connector 2 x Serial Interface Connector (TX/RX) Display 1 x VGA (2.54mm) 1 x LVDS LCD Panel Connector 1 x DP Audio 1 x Audio (Line-out/Mic-in) 1 x S/PDIF SATA 2 x SATA 3.0 (up to 6Gb/s) 2 x SATA 2.0 (up to 3Gb/s) DIO 1 x 8-bit DIO 1 x SDIO slot LPC 1 x LPC SMBus 1 x SMBus I2C 1 x I2C Power Type 12V, 5VSB, VCC_RTC (ATX mode) 12V, VCC_RTC (AT mode) Connector ? 4-pin ATX 12V power 24-pin ATX power Environment Temperature ? Operating: 0 to 60°C Storage: -20 to 85°C Humidity Operating: 5 to 90% RH Storage: 5 to 90% RH MTBF TBD Mechanism Dimensions microATX Form Factor 244mm (9.6") x 244mm (9.6") Compliance PICMG COM Express® R2.0, Type 6 Basic, Compact Modules Packing List Packing List 1 COM331-B board 2 Serial ATA data cables 1 COM port cable (with bracket) 1 QR (Quick Reference) 1 DVD
