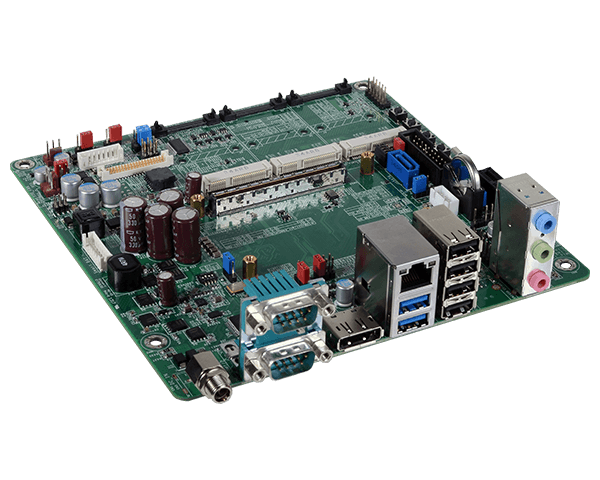

| COM100-B / Mini-ITX, Mini Modules | 산업용보드 > COM EXP Mini | 0 |
|---|---|---|
|
제품문의 02-3016-2464 http://www.wjubc.co.kr
Mini-ITX form factor Multiple displays: 1 DP, 1 LVDS Supports Mini modules COM Express® R2.1, Pin-out Type 10 Rich I/O: 1 GbE, 6 USB, 2 COM ? Graphics Display 1 x DP 1 x LVDS Expansion Interface 1 x PCIe x1 3 x Mini PCIe 1 x SIM Card Socket Audio Audio Codec Realtek ALC886 Rear I/O Ethernet 1 x GbE (RJ-45) Serial 2 x serial ports(TX/RX) USB 2 x USB 3.0 4 x USB 2.0 Display 1 x DP Audio 1 x Line-in 1 x Line-out 1 x Mic-in Internal I/O Serial 1 x Serial Interface Connector (TX/RX) Display 1 x LVDS LCD Panel Connector 1 x LCD/Inverter Power Audio 1 x Audio (Line-out/Mic-in) 1 x S/PDIF SATA 1 x SATA 3.0 (up to 6Gb/s) 1 x SATA power connector DIO 1 x 8-bit DIO LPC 1 x LPC SMBus 1 x SMBus I2C 1 x I2C Power Type 12V, 5VSB, VCC_RTC (ATX mode) 12V, VCC_RTC (AT mode) Supply 5V~19V DC-in jack Environment Temperature Operating: 0 to 60°C Storage: -40 to 85°C Humidity Operating: 5 to 90% RH Storage: 5 to 90% RH MTBF TBD Mechanism Dimensions Mini-ITX Form Factor 170mm (6.7") x 170mm (6.7") Compliance PICMG COM Express® R2.1, Type 10 Packing List Packing List 1 COM100-B board 1 SATA data cable 1 SATA power cable 1 I/O shield
