Qseven R1.2

Supports Qseven modules

Multiple displays: 1 LVDS, 1 HDMI

Rich I/O: 1 GbE, 2 USB 2.0, 3 COM

190 x 102mm (7.48" x 4.02")

?

Graphics

Display

1 x HDMI

1 x LVDS

Expansion

Interface

1 x Mini PCIe

1 x SIM Card Socket

Audio

Interface

I2S Audio

Rear I/O

Ethernet

1 x GbE (RJ-45)

Serial

2 x RS232 Serial

USB

2 x USB 2.0

1 x USB Client

Display

1 HDMI

Audio

1 x Line-out/Mic-in jack

Internal I/O

Serial

1 x MXM Connector

1 x RS232/422/485 serial

1 x FlexCAN Connector

Display

1 x LVDS LCD Panel Connector

Audio

2 x 1W audio amplifier connectors (left and right sides)

DIO

1 x 12Bit DIO

Power

Type

12V, 5VSB, VCC_RTC (ATX mode)

12V, VCC_RTC (AT mode)

Supply

12~36V DC-in jack

Environment

Temperature

Operating: 0 to 60¡ÆC

Storage: -40 to 85¡ÆC

Humidity

Operating: 5 to 90% RH

Storage: 5 to 90% RH

MTBF

TBD

Mechanism

Dimensions

190mm (7.48") x 102mm (4.02")

Packing List

Packing List

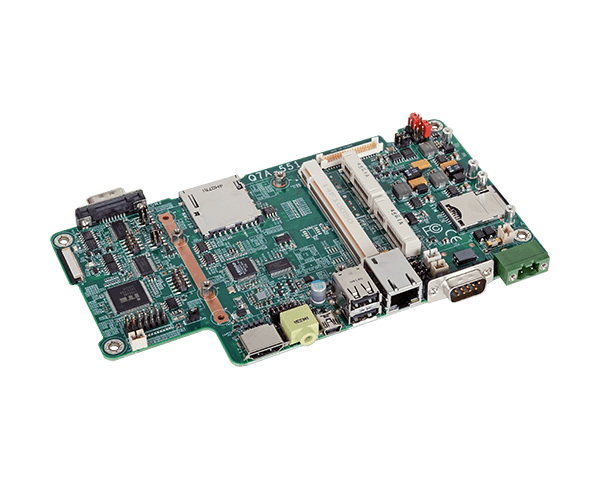

1 Q7A-551 board

1 Power switch with cable: A81-006006-001G

1 Speaker 1.5W with cable: 293-120012-000G
