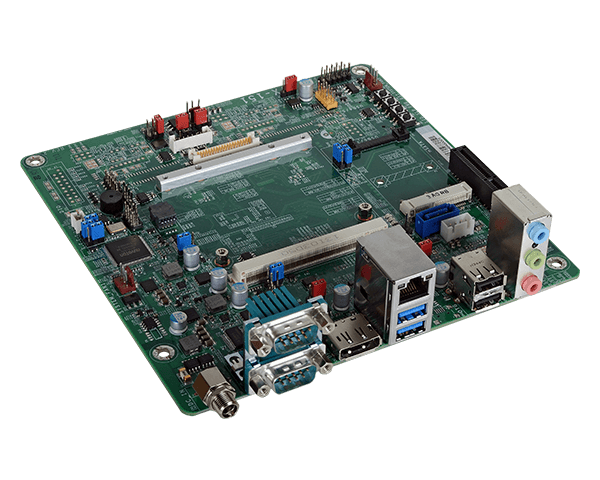

| Q7X-151 / Mini-ITX, Qseven Modules | 산업용보드 > COM EXP Mini | 0 |
|---|---|---|
|
제품문의 02-3016-2464 http://www.wjubc.co.kr
Qseven R2.0 Supports Qseven modules Multiple displays: 1 DP, 1 LVDS Rich I/O: 1 GbE, 1 USB 3.0, 6 USB 2.0, 2 COM Mini-ITX form factor ? Graphics Display 1 x DP 1 x LVDS ? Expansion Interface 1 x PCIe x4 1 x SDIO Audio Audio Codec Realtek ALC886 Rear I/O Ethernet 1 x GbE (RJ-45) Serial 2 x RS232 Serial USB 1 x USB 3.0 2 x USB 2.0 Display 1 x DP Audio 1 x Line-in 1 x Line-out 1 x Mic-in Internal I/O Serial 1 x Serial Interface Connector (TX/RX) USB 4 x USB2.0 Display 1 x LVDS LCD Panel Connector 1 x LCD/Inverter Power SATA 1 x SATA 3.0 (up to 6Gb/s) 1 x mSATA LPC 1 x LPC SMBus 1 x SMBus UART 2 x UART (TX/RX) Power Type 12V, 5VSB, VCC_RTC (ATX mode) 12V, VCC_RTC (AT mode) Supply 12V DC-in jack Environment Temperature Operating: 0 to 60°C Storage: -40 to 85°C Humidity ? Operating: 5 to 90% RH Storage: 5 to 90% RH MTBF TBD Mechanism Dimensions Mini-ITX Form Factor 170mm (6.7") x 170mm (6.7") Packing List Packing List 1 Q7X-151 board 1 Serial ATA data with power cable: 332-553001-005G 1 I/O shield: A49-Q7X151-000G 1 DVD
