| COM333-I / microATX, Basic/Compact Modules | 산업용보드 > COM EXP Mini | 0 |
|---|---|---|
|
제품문의 02-3016-2464 http://www.wjubc.co.kr

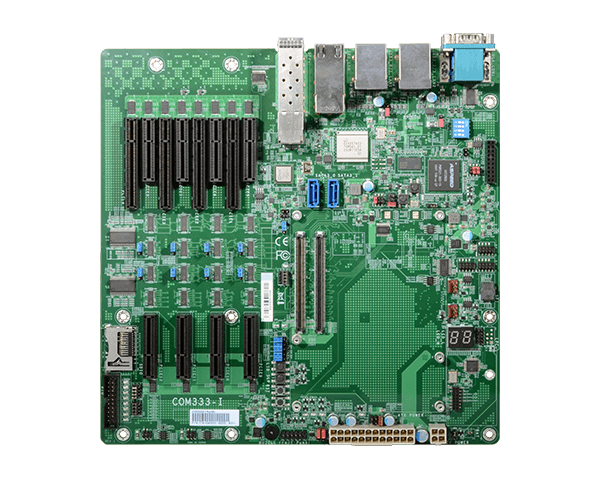

COM Express® R3.0, Pin-out Type 7 Supports Compact and Basic modules Multiple expansion: 8 PCIe x4 or 4 PCIe x8, 2 SATA 3.0 Rich I/O: 2 GbE, 4 10Gbase-KR, 4 USB 3.0/2.0, 1 COM microATX form factor ? Expansion Interface B1: 2 x PCIe x4 or 1 x PCIe x8 (Gen 3) B2: 2 x PCIe x4 or 1 x PCIe x8 (Gen 3) B3: 2 x PCIe x4 or 1 x PCIe x8 (Gen 3) B4: 2 x PCIe x4 or 1 x PCIe x8 (Gen 3) Rear I/O Ethernet 4 x 10GbE LAN (2 x RJ-45, 2 x SFP+) by 10GBASE-KR interface 2 x 1GbE LAN (RJ-45) (one from module; another from BMC for remote management) Serial 1 x RS-232 (DB-9) (supports by BMC which default is debug port and may switch to normal RS-232) USB 4 x USB 3.0/2.0 Internal I/O Serial 2 x Serial Interface Connectors (TX/RX) (2.0mm pitch) SATA 2 x SATA 3.0 (up to 6Gb/s) DIO 1 x 8-bit DIO (4 input, 4 output) 1 x SDIO (available upon request) LPC 1 x LPC SMBus 1 x SMBus Power Connector 4-pin ATX 12V power 24-pin ATX power Battery CR2032 Coin Cell Environment Temperature Operating: 0 to 60°C Storage: -40 to 85°C Humidity Operating: 5 to 90% RH Storage: 5 to 90% RH MTBF TBD Mechanism Dimensions microATX Form Factor 244mm (9.6") x 244mm (9.6") Compliance PICMG COM Express® R3.0, Type 7 Basic, Compact Modules Packing List Packing List 1 COM333-I board 1 Serial ATA data cable (Length: 500mm): 332-553001-005G BMC Features 1. IPMI 2.0 2. Web Browser Support 3. Web Interface 4. iKVM (keyboard, video, and mouse) 5. Virtual Media 6. 3rd Party Authentication 7. Firmware Update 8. SMASH/CLP 9. WS-MAN 10. Network Service Processor AST2500 SDRAM DDR4-2400 1200MHz 8Gb memory down Display Through BMC to convert VGA signal VGA: resolution up to 1920 x 1200 x 32bpp (share with SOC 16MB memory)
