| COM332-B(R.B1) / microATX, Basic/Compact Modules | 산업용보드 > COM EXP Mini | 0 |
|---|---|---|
|
제품문의 02-3016-2464 http://www.wjubc.co.kr

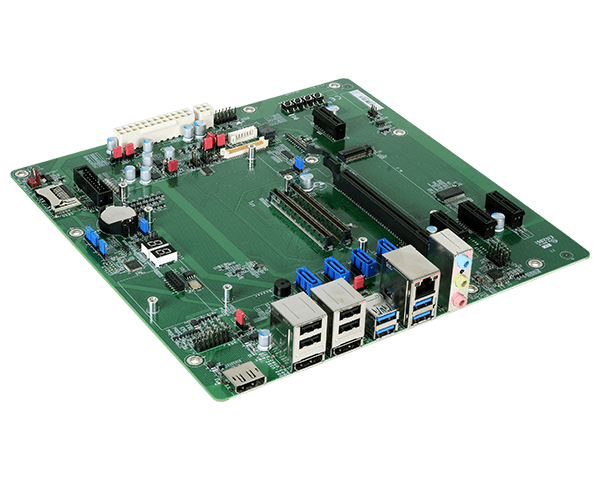

COM Express® R2.1, Pin-out Type 6 Supports Compact and Basic modules Multiple displays: VGA, LVDS, DP, eDP Rich I/O: 1 GbE, 4 USB 3.1, 4 USB 2.0 microATX form factor ? Graphics Display 1 x VGA 1 x LVDS/eDP (eDP available upon request) 3 x DP 1 x eDP/LVDS (LVDS available upon request) Expansion Interface 1 x PCIe x16 4 x PCIe x1 1 x M.2 M Key 2280 1 x SDIO Audio Audio Codec Realtek ALC888S-VD2-GR Rear I/O Ethernet 1 x GbE (RJ-45) USB 4 x USB 3.1 (Gen2) 4 x USB 2.0 Display 3 x DP Audio 1 x Line-in 1 x Line-out 1 x Mic-in Internal I/O Serial 2 x Serial Interface Connector (TX/RX) Display 1 x VGA (2.54mm) 1 x LVDS LCD Panel Connector 1 x LCD/Inverter Power 1 x eDP LCD Panel Connector Audio 1 x Audio (Line-out/Mic-in) 1 x S/PDIF SATA 4 x SATA 3.0 (up to 6Gb/s) DIO 1 x 8-bit DIO LPC 1 x LPC SMBus 1 x SMBus Power Type 12V, 5VSB, VCC_RTC (ATX mode) 12V, VCC_RTC (AT mode) Connector 4-pin ATX 12V power 24-pin ATX power RTC Battery CR2032 Coin Cell Environment Temperature Operating: 0 to 60°C Storage: -40 to 85°C Humidity Operating: 5 to 90% RH Storage: 5 to 90% RH MTBF 488,117 hrs @ 25°C; 253,684 hrs @ 45°C; 136,621 hrs @ 60°C Calculation Model: Telcordia Issue 2, Method Case 3 Environment: GB, GC ? Ground Benign, Controlled Mechanism Dimensions microATX Form Factor 244mm (9.6") x 244mm (9.6") Compliance PICMG COM Express® R2.1, Type 6 Basic, Compact Modules Packing List Packing List 1 COM332-B(R.B1) board 1 Serial ATA data cable (Length: 500mm): 332-553001-005G 1 VGA cable: A81-012000-000G 1 QR (Quick Reference)
