15" J1900 Full IP65 Touch Panel PC PCAP 5 wire resistive »ê¾÷¿ëº¸µå > FULL IP65/66ÆÐ³ÎPC 0

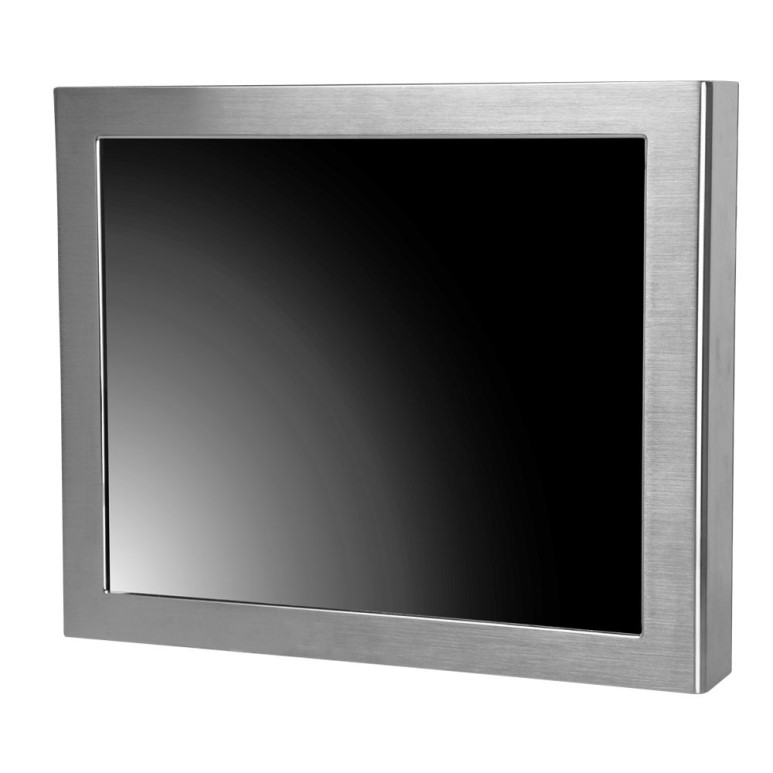

WP 15 ¡°Full IP65 stainless 5 wire resistive touch panel PCs are fanless design and compact solution. Equipped wit Intel¢ç Bay Trail Quad Core J1900 2.0GHz CPU and 1 x USB, 2 x RS232 , 1 x GLAN I/O ports, it can offer the device stable user experience. The resolution is 1024 x 768 dpi . The operating system is widow7,8,10. It¡¯s made by Full IP65 stainless steel and can prevent from strong water and heavy rain. Besides, kingdy¡¯s has high brightness panels for reference.

?

Fanless design and compact solution

Intel¢ç Bay Trail Quad Core J1900 2.0GHz CPU

Resolution 1024 x 768 dpi

5 wires resistive touch solution

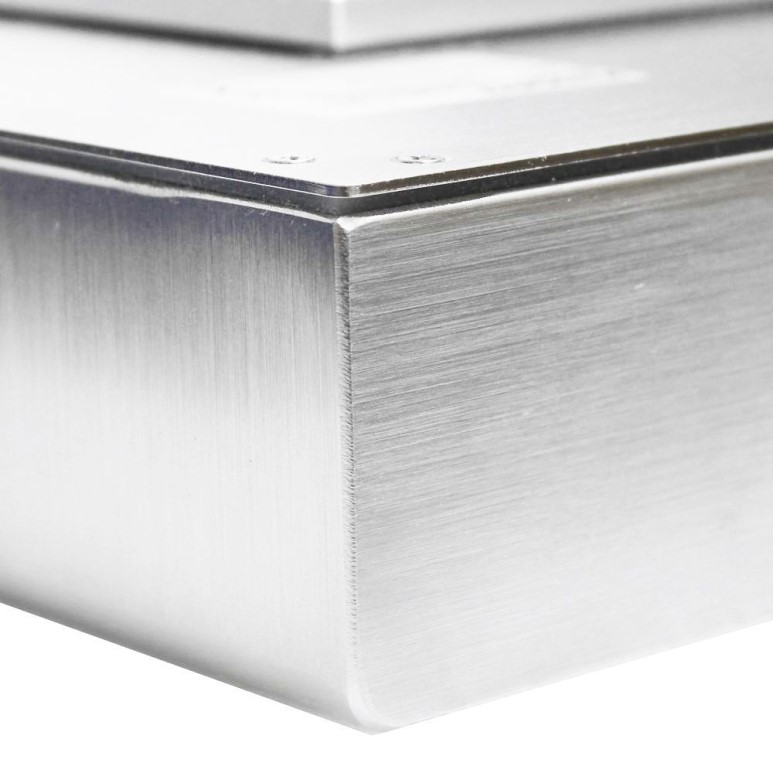

Fully IP65 compliant 6-sised stainless steel chassis

All IP65 stainless connectors

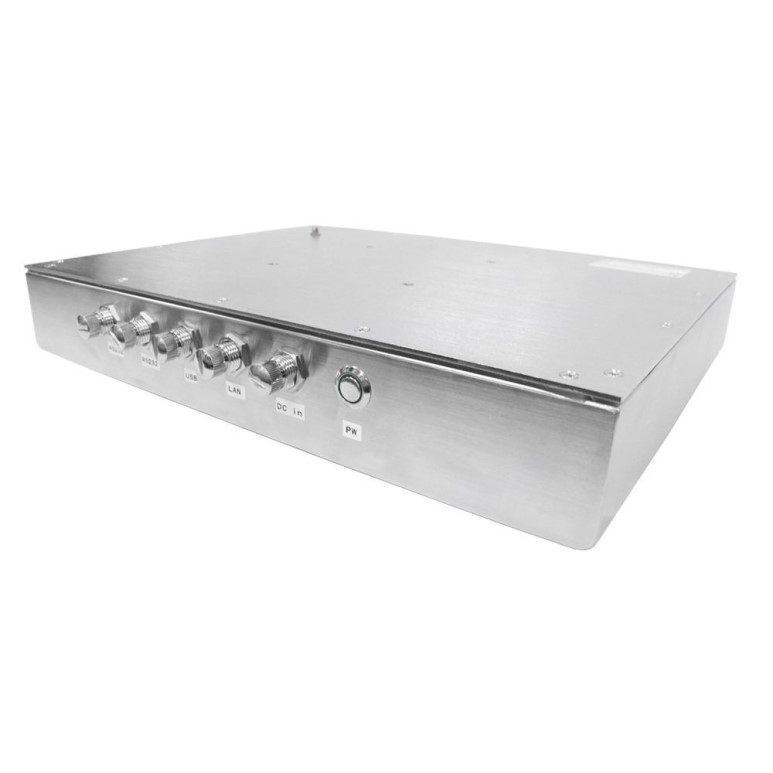

1 x USB, 2 x RS232, 1 x GLAN

VESA mounting

?

System

CPU

Intel¢ç Bay Trail D-J1900 2.0GHz Quad Core Processor

Memory

1 x 204-pin DDR3L SODIMM up to 8GB

H/W Monitor

Watch Dog Timer

Watch Dog Timer 256 Level

I/O Ports

RS232

2

GLAN

1

USB

1

Storage

Storage

1 x SATA 2.0 2.5¡± HDD/SSD

Power Requirement

Power Requirement

DC in 12V for 005S /24V for 030S

Touch Screen

Touch Screen

5 wire Resistive

OS support

Win Pro 7,8,10 ; Embedded Win 7, 8,10

Display

Size

15" TFT (4:3)

Resolution

1024 x 768

Colors

16.2 M

Luminance ( cd/m2)

400

Contrast Ratio

700:1

View Angle ( H / V )

160/160

Mechanical &Environmental

Operation Temp

0~ 45¡ÆC

Storage Humidity

10 ~ 90%, non-condensing

Mount

VESA mounting(100 X 100 mm)

Dimension (W x H x D mm)&Weight

380 x 290 x 67 (9.5kg)

Storage Humidity

10 ~ 90%, non-condensing

Optional

RS232/422/485

1

VGA

1

Second Lan

1

External antenna

1 or 2

RFID

1

Full IP65 Power Adaptor

1

Optional Bonding

1

No Touch Screen

1

AR Glass

1
