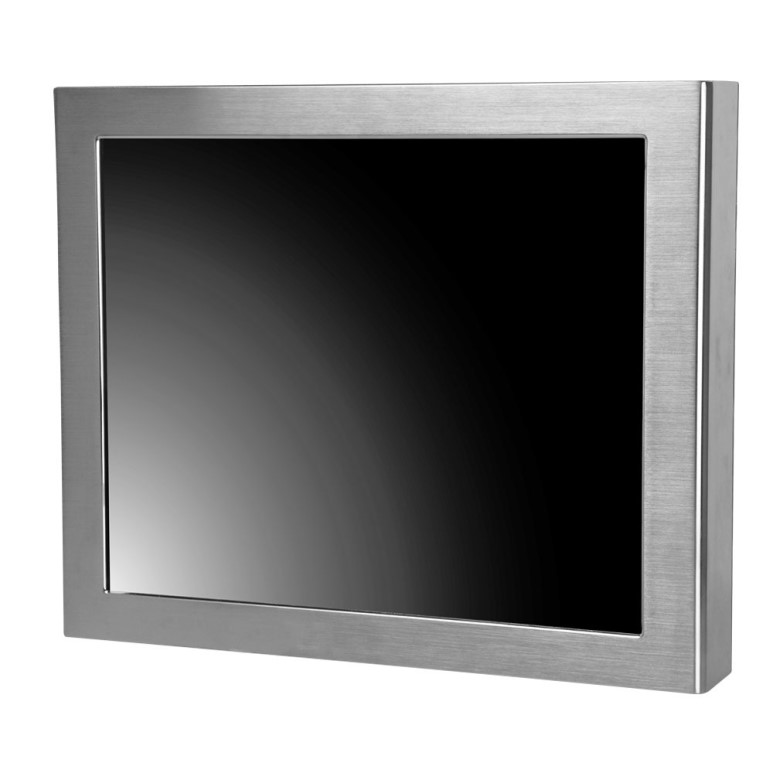

15" 4th gen Intel Core Touch Panel PC - Full IP65 5 wire Resistive

산업용보드 > FULL IP65/66패널PC

WP 15 ” Full IP65 stainless steel touch panel pcs can keep from water and oil in harsh environment. Fanless design and compact solution. Equip with Intel 4th Gen Intel® Core™HSW ULT i3/ i5/ i7 CPU and 1 x USB or 2 x RS232, 1 x GLAN I/O ports can offer user’s good experience. The resolution is 1024 x 768 dpi. The operating system is widow7,8,10. Kingdy also offer all kinds of sunlight readable high brightness panels for reference.

Fanless design and compact solution

Intel 4th Gen Intel® Core™HSW ULT i3/ i5/ i7 CPU

Resolution 1024 x768 dpi

5 wires resistive touch solution

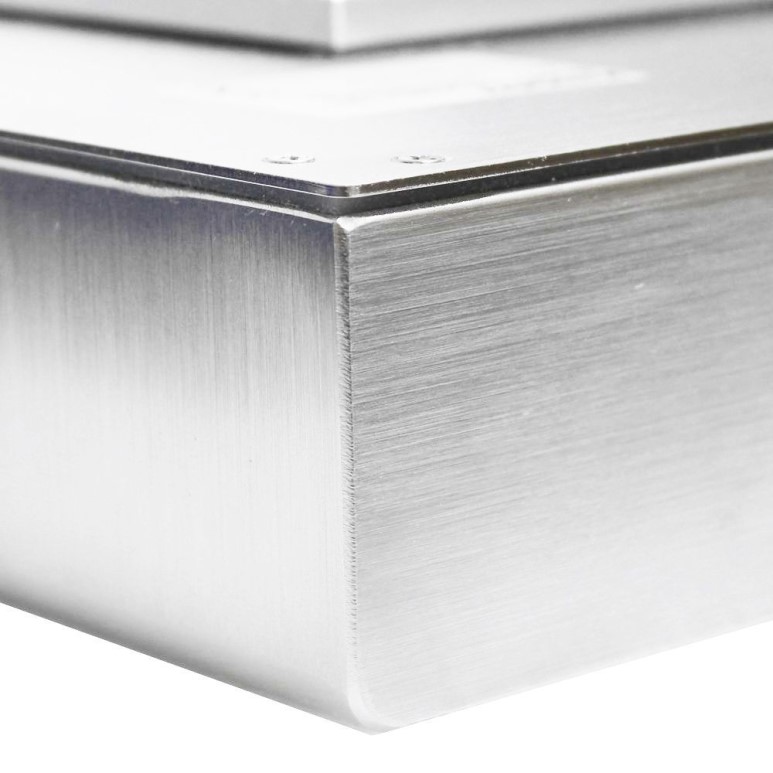

Fully IP65 compliant 6-sised stainless steel chassis

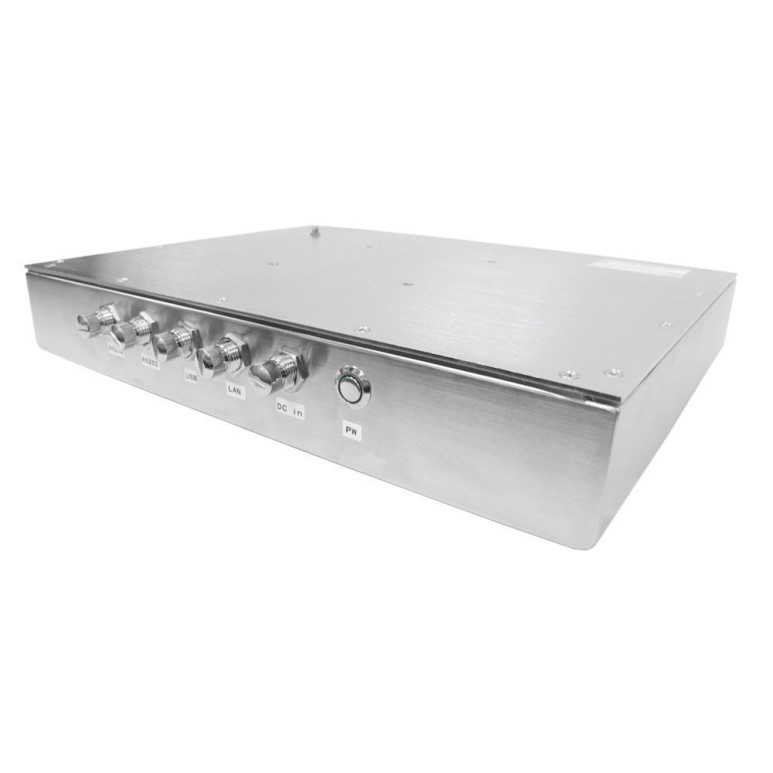

All IP65 stainless connectors

1 x USB, 2 x RS232, 1 x GLAN

VESA mounting

System
CPU	Intel 4th Gen Intel® Core™HSW ULT i3 4010U/ i5 4300U/ i7 4650U CPU
Memory	2 x 204-pin DDR3L SODIMM up to 16GB
H/W Monitor
Watch Dog Timer	Watch Dog Timer 256 Level
I/O Ports
RS232	2
GLAN	1
USB	1
Storage
Storage	1 x SATA 2.0 2.5” HDD/SSD
Power Requirement
Power Requirement	DC in 19 ~ 24V
Touch Screen
Touch Screen	5 wire Resistive
OS support
	Win Pro 7,8,10 ; Embedded Win 7, 8,10
Display
Size		17" TFT (4:3)
Resolution		1280 x 1024
Colors		16.7 M
Luminance ( cd/m2)		350
Contrast Ratio		1000:1
View Angle ( H / V )		140/170
Mechanical &Environmental
Operation Temp	0~ 45°C
Storage Humidity	10 ~ 90%, non-condensing
Mount	VESA mounting(100 X 100 mm)
Dimension (W x H x D mm)&Weight	425 x 361 x 68 (12.5kg)
Storage Humidity	10 ~ 90%, non-condensing
Optional
Second Lan	1
External antenna	1 or 2
RFID	1
Full IP65 Power Adaptor	1
Optional Bonding	1
No Touch Screen	1
AR Glass	1
