15" 6th gen Intel Core Touch Panel PC- Full IP65 Wide Temperature 5 wire Resistiv

산업용보드 > FULL IP65/66패널PC

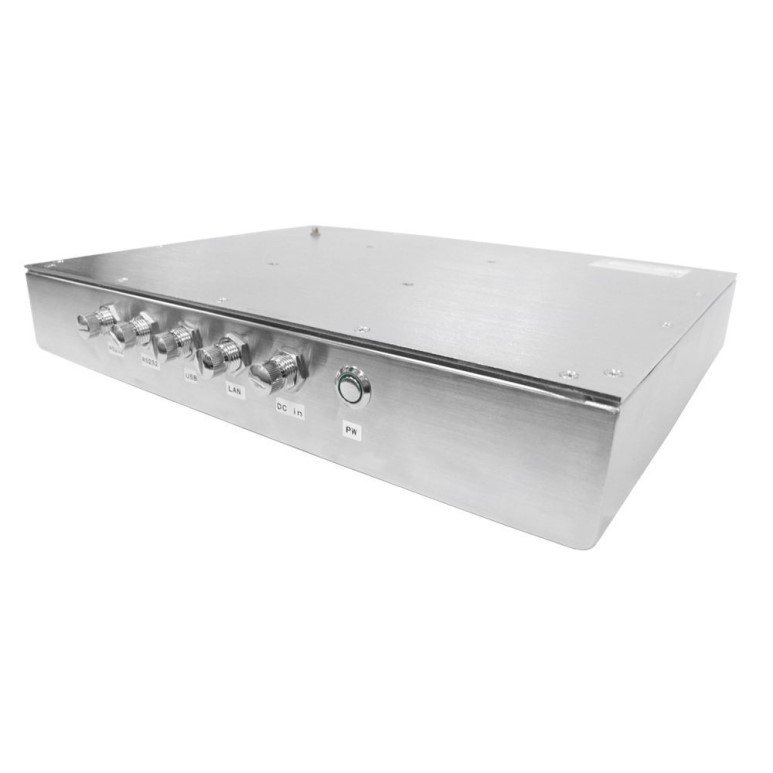

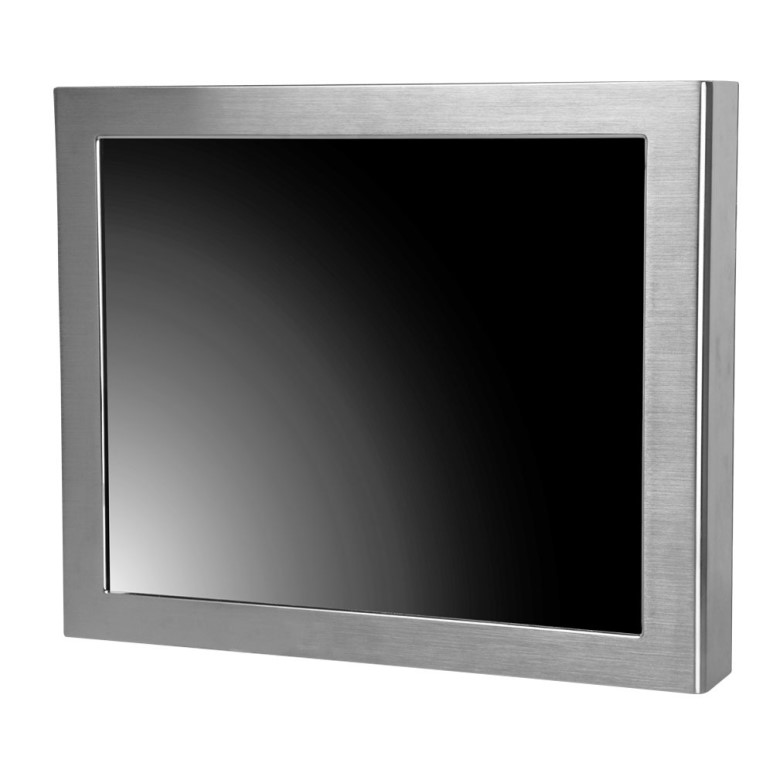

WP 15 “Full IP65 wide temperature stainless 5 wire resistive touch panel PCs are fanless design and compact solution. Equipped with 6th Gen Intel® Core™ Celeron/ i5/i7 CPU and 2 x USB, 2 x RS232 , 2 x GLAN I/O ports, it can offer the device stable user experience. The resolution is 1920 x 1080 dpi and the operating temperature is -20 ~ 55°C. It’s made by Full IP65 silver stainless steel and can prevent from strong water and heavy rain. The Operating system is window 7,8,10. The VESA mount and clips to choose make the it easy to install. Besides, kingdy also has high brightness panels for customers for choose.

Fanless design and compact solution

6th Gen Intel® Core™ Celeron/ i5/i7 CPU

Resolution 1920 x 1080 dpi

5 wires resistive touch solution

Wide Temperature -20 ~ 55°C

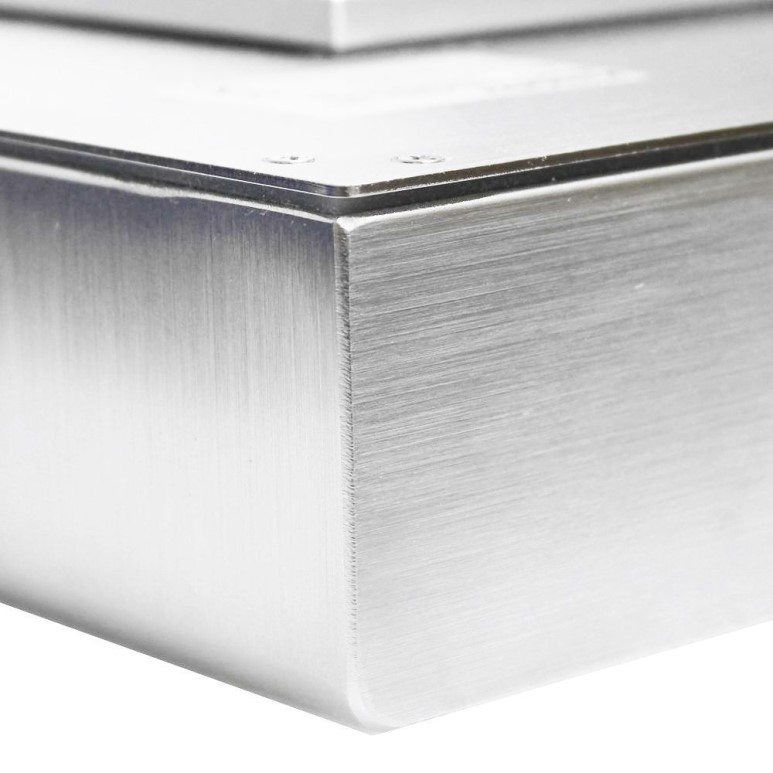

Fully IP65 compliant 6-sised stainless steel chassis

All IP65 stainless connectors

2 x USB, 2 x RS232, 2 x GLAN

VESA mounting

System
CPU	6th Gen Intel® Core™ i7-6600U
Memory	2 x 204-pin DDR3L SODIMM up to 16GB
H/W Monitor
Watch Dog Timer	Watch Dog Timer 256 Level
I/O Ports
RS232	2
GLAN	1
USB	1
Storage
Storage	1 x SATA 2.0 2.5” HDD/SSD
Power Requirement
Power Requirement	DC in 12V for 039Wor 15~36V for 040W
Touch Screen
Touch Screen	5 wire Resistive
OS support
	Win Pro 7,8,10 ; Embedded Win 7, 8,10
Certification
	CE, FCC
Display
Size		15" TFT (4:3)
Resolution		1024 x 768
Colors		16.2 M
Luminance ( cd/m2)		400
Contrast Ratio		700:1
View Angle ( H / V )		160/160
Mechanical &Environmental
Operation Temp	-20~ 55°C
Storage Humidity	10 ~ 90%, non-condensing
Mount	VESA mounting(100 X 100 mm)
Dimension (W x H x D mm)&Weight	380 x 290 x 67 (9.5kg)
Storage Humidity	10 ~ 90%, non-condensing
Optional
Second Lan	1
External antenna	1 or 2
RFID	1
Full IP65 Power Adaptor	1
Optional Bonding	1
No Touch Screen	1
AR Glass	1
