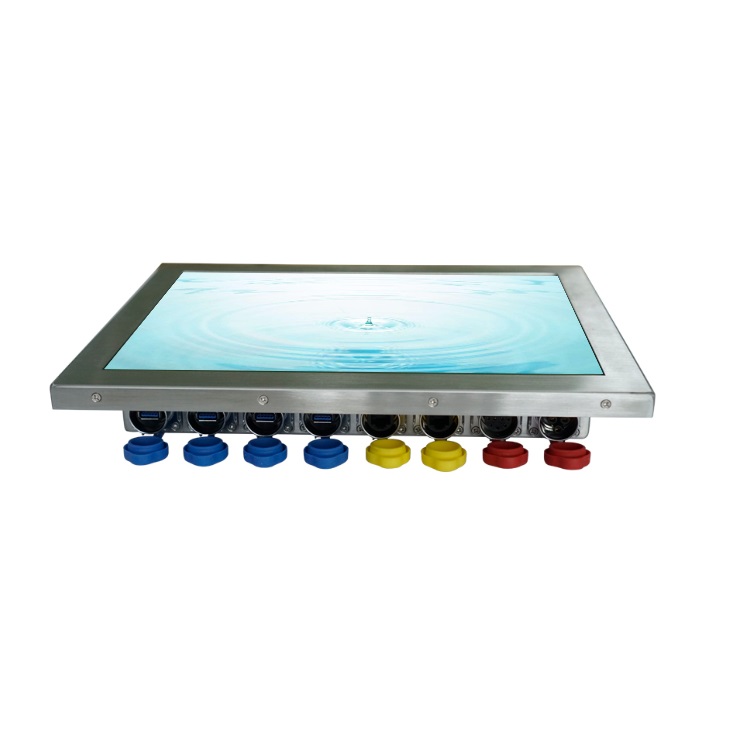

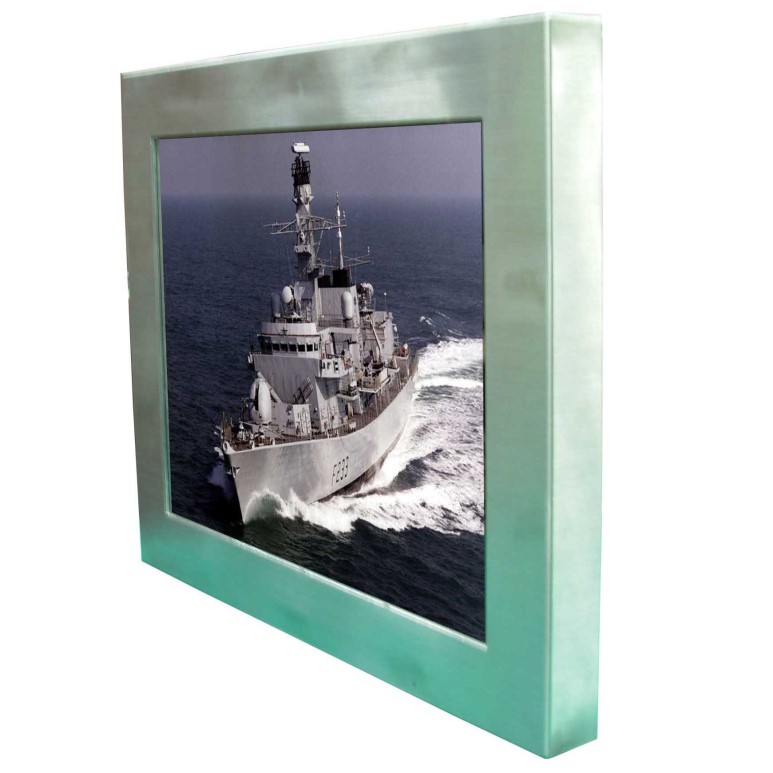

9.7 inch Full IP65/IP66 Waterproof Touchscreen Panel PC

산업용보드 > FULL IP65/66패널PC

BENEFITES

- Exceptional quality and highly engineered industrial panel computer

- High Performance Processor, Graphics, Memory and Power

- Ruggedized levels of NEMA 12, 4X, 4, IP52, IP56, IP65 ratings from all directions

- Solid steel and stainless steel or aluminum alloy enclosures

- IP65 sealed, Full IP65 I/O connectors protect from any particles, water, and corrosive agents

- Easy-to-install VESA(75/100mm) wall mounting

- Optional touchscreens like resistive and PCAP

- Flexible, reliable, and ruggedized for open platform HMI/SCADA

- Long lasting product cycle for continuity thru all phases of project

Full IP65/IP66 Touchscreen Panel PC ?
Model Name		?
IP Rating		IP65/IP66(IP67 optional)
? PC Systems Options ?
ARM Android Based RK3288(RK3368 optional)	X86 Windows Based		X86 Windows Based
CPU: Quad-Core Cortex-A17 1.8GHz	CPU: Intel Celeron J1900		CPU: Intel Core i3/i5/i7
Chipset: N/A	Chipset: Intel NM10 Express		Chipset: Intel HD Graphics, Support 1080p
Memory: 1G/2G	Memory: 2GB(Max. 8GB)		Memory: 2GB(Max. 8GB)
HDD/SSD: 8G	HDD/SSD:500G/64G		HDD/SSD:500G/64G
1×HDMI	1×VGA, 1×HDMI		1×VGA, 1×HDMI
1×USB 2.0	2×USB 2.0, 2×USB3.0		2×USB 2.0, 2×USB3.0
1×mini-SD slot	1×COM(RS232/422/485)		1×COM(RS232/422/485)
1×LAN	1×LAN		1×LAN
1×Audio Out	1×Audio Out, 1×MIC In		1×Audio Out, 1×MIC In
Expansion: SSD	Expansion: USB, COM, Mini-PCIe		Expansion: USB, COM, Mini-PCIe
Default IP65 Connectors: 1×USB 2.0, 1×LAN, 1×DC 2.0
? LCD Panel ?
Screen Diagonal (Inch/cm)		9.7”
Display Active Screen Size (mm)		196.608(H)×147.456(V)
Aspect Ratio		4:3
Physical Resolution		1024×768
Maximum Resolution Supported		1920×1080
Colors		262K
Brightness (cd/m2)		300
Contrast Ratio		500:1
View Angels		80/80/80/80
Backlight/Backlight Lifetime		LED Backlight with 50000Hours’Lifetime
? Touch Panel ?
Touch Options		Resistive, PCAP
Touch Drivers		Windows, Linux, Android, Mac, Raspberry Pi
? Operation ?
Operating Temperature Range		-10~60°C (-20~70°C Optional)
Humidity Range (RH)		10-90%
24/7/365 Use		Supported
? Power ?
Power Indicator		Green LED
Power Input		DC12V
Power Consumption		20W
? Order Information ?
9.7”Full IP65/IP66 Panel PC with Resistive Touch, J1900		?
9.7”Full IP65/IP66 Panel PC with PCAP Touch, J1900		?
9.7”Full IP65/IP66 Panel PC with Tempered Glass, J1900		?
9.7”Full IP65/IP66 Panel PC with Resistive Touch, i3		?
9.7”Full IP65/IP66 Panel PC with PCAP Touch, i3		?
9.7”Full IP65 /IP66Panel PC with Tempered Glass, i3		?
