12.1 inch Full IP65/IP66 TouchscreenPanel PC »ê¾÷¿ëº¸µå > FULL IP65/66ÆÐ³ÎPC 0




BENEFITES

-Exceptional quality and highly engineered industrial panel computer

-High Performance Processor, Graphics, Memory and Power

-Ruggedized levels of NEMA 12, 4X, 4, IP52, IP56, IP65 ratings from all directions

-Solid steel and stainless steel or aluminum alloy enclosures

-IP65 sealed, Full IP65 I/O connectors protect from any particles, water, and corrosive agents

-Easy-to-install VESA(75/100mm) wall mounting

-Optional touchscreens like resistive and PCAP

-Flexible, reliable, and ruggedized for open platform HMI/SCADA

-Long lasting product cycle for continuity thru all phases of project

?

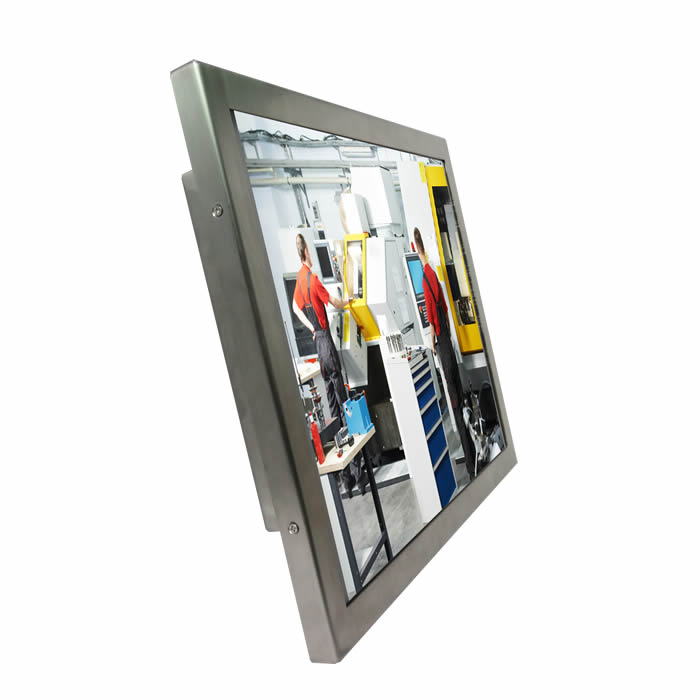

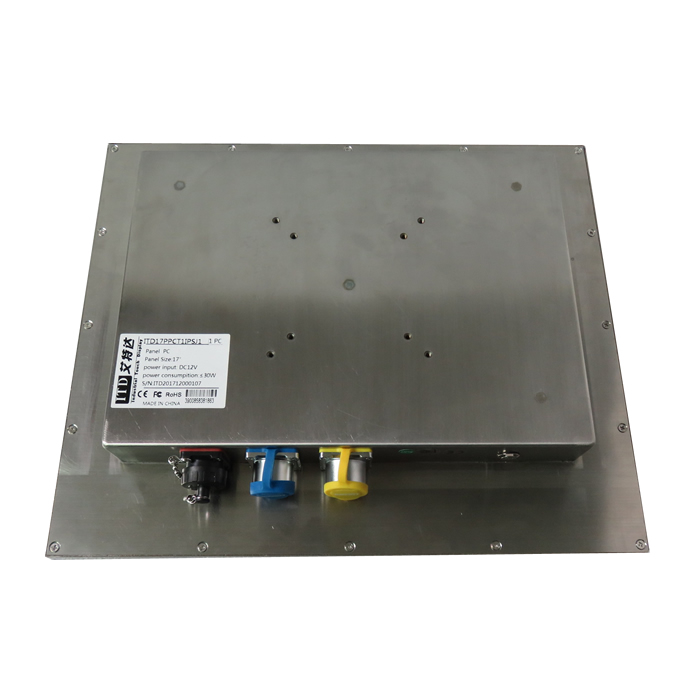

Full IP65/IP66 Touchscreen Panel PC

?

Model Name

?

IP Rating

IP65/IP66(IP67 optional)

?

PC Systems Options

ARM Android Based RK3288(RK3368 optional)

X86 Windows Based

X86 Windows Based

CPU: Quad-Core Cortex-A17 1.8GHz

CPU: Intel Celeron J1900

CPU: Intel Core i3/i5/i7

Chipset: N/A

Chipset: Intel NM10 Express

Chipset: Intel HD Graphics, Support 1080p

Memory: 1G/2G

Memory: 2GB(Max. 8GB)

Memory: 2GB(Max. 8GB)

HDD/SSD: 8G

HDD/SSD:500G/64G

HDD/SSD:500G/64G

1¡¿HDMI

1¡¿VGA, 1¡¿HDMI

1¡¿VGA, 1¡¿HDMI

1¡¿USB 2.0

2¡¿USB 2.0, 2¡¿USB3.0

2¡¿USB 2.0, 2¡¿USB3.0

1¡¿mini-SD slot

1¡¿COM(RS232/422/485)

1¡¿COM(RS232/422/485)

1¡¿LAN

1¡¿LAN

1¡¿LAN

1¡¿Audio Out

1¡¿Audio Out, 1¡¿MIC In

1¡¿Audio Out, 1¡¿MIC In

Expansion: SSD

Expansion: USB, COM, Mini-PCIe

Expansion: USB, COM, Mini-PCIe

Default IP65 Connectors: 1¡¿USB 2.0, 1¡¿LAN, 1¡¿DC 2.0

?

LCD Panel

Screen Diagonal (Inch/cm)

12.1¡±

Display Active Screen Size (mm)

248(H)x186(V)mm

Aspect Ratio

4:3

Physical Resolution

800x600

Maximum Resolution Supported

1920x1080

Colors

16.7M

Brightness (cd/m2)

300nits

Contrast Ratio

700:1

View Angels

80/80/70/70

Backlight/Backlight Lifetime

LED Backlight with 50000 Hours¡¯Lifetime

?

Touch Panel

Touch Options

Resistive, PCAP

Touch Drivers

Windows, Linux, Android, Mac, Raspberry Pi

?

Operation

?

Operating Temperature Range

-10~60¡ÆC (-20~70¡ÆCOptional)

Humidity Range (RH)

10-90%

24/7/365 Use

Supported

?

Power

Power Indicator

Green LED

Power Input

DC12V

Power Consumption

22W

?

Order Information

12.1¡±Full IP65/IP66Panel PC with Resistive Touch, J1900

?

12.1¡±Full IP65/IP66 Panel PC with PCAP Touch, J1900

?

12.1¡±Full IP65/IP66 Panel PC with Tempered Glass, J1900

?

12.1¡±Full IP65/IP66 Panel PC with Resistive Touch, i3

?

12.1¡±Full IP65/IP66 Panel PC with PCAP Touch, i3

?

12.1¡±Full IP65/IP66 Panel PC with Tempered Glass, i3

?
