JNF731-3855U/JNF731-3865U/JNF731-3955U/JNF731-3965U

산업용보드 > EATX

- Intel Skylake / Kaby Lake-U Celeron Processor 15W

- Embedded Long-life 3.5" SBC Series, Planned Lifecycle Through Q3’2030

- CPU on Bottom for Easy Integration into Fanless Systems

- 4 * Intel Gigabit LAN, 2 * mini PCI-E, 1 * mSATA

- Built-in +12V Locking Power Jack, optional TPM 1.2/2.0

- ECO-design for EuP/ErP

Specification

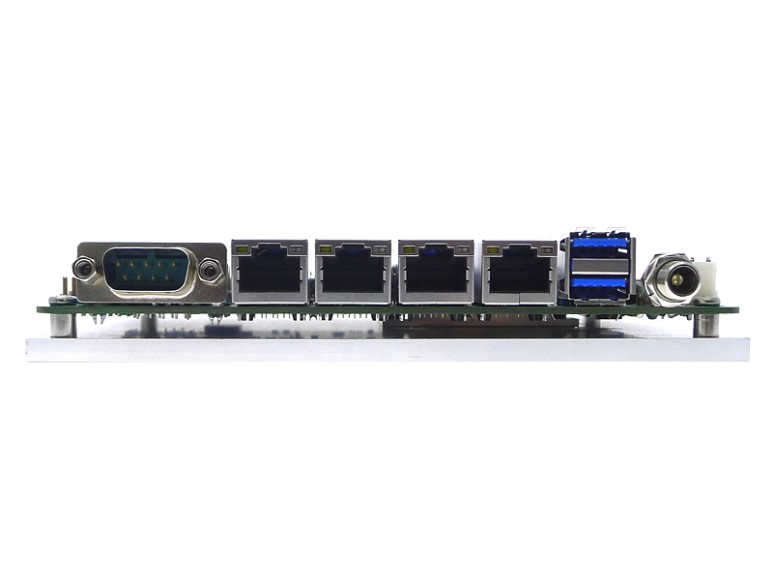

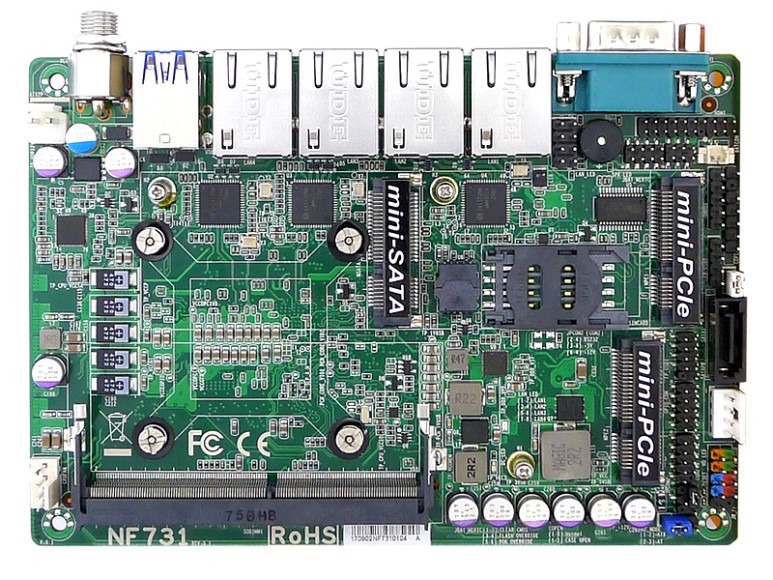

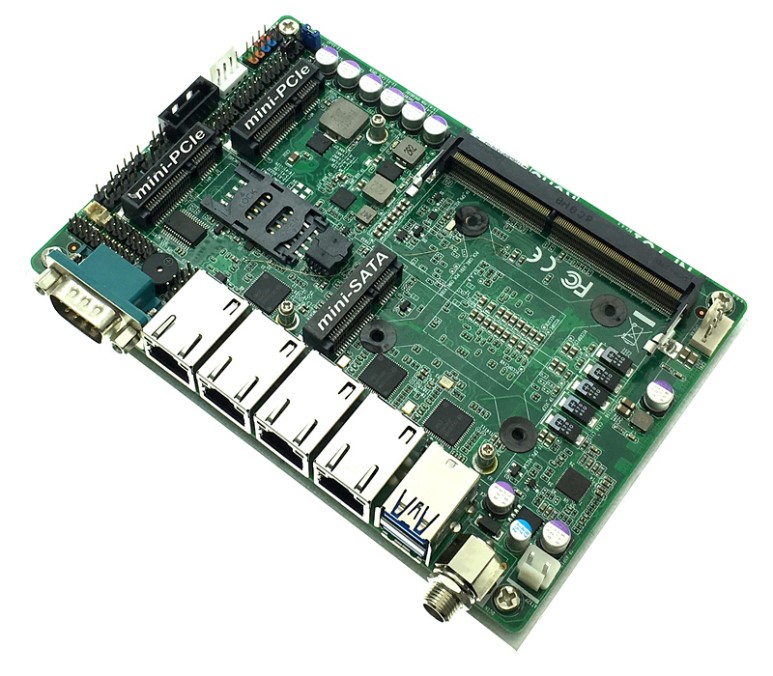

Jetway NF731 3.5" SBC Motherboard
Processor	Fanless Intel® Celeron 3965U/3955U/3865U/3855U, Skylake-U/Kaby lake-U 15W Processors * Ships with flat heatsink installed for direct attaching to chassis
Memory	1 x 260-pin SODIMM un-buffered DDR4-2133 up to 16GB
Graphics	Intel HD Graphics 610/510, 300MHz - 900MHz
Audio	NA
LAN	1 x Intel i219-LM PHY Gigabit LAN 3 x Intel i211-AT PCI-E Gigabit LAN
Storage	1 x SATA3 6Gb/s Connector 1 x mSATA
Super IO	FINTEK F81768D
TPM	Intel fTPM 2.0 (PTT) Trusted Computing Firmware OEM Option: Onboard TPM v1.2 or v2.0
