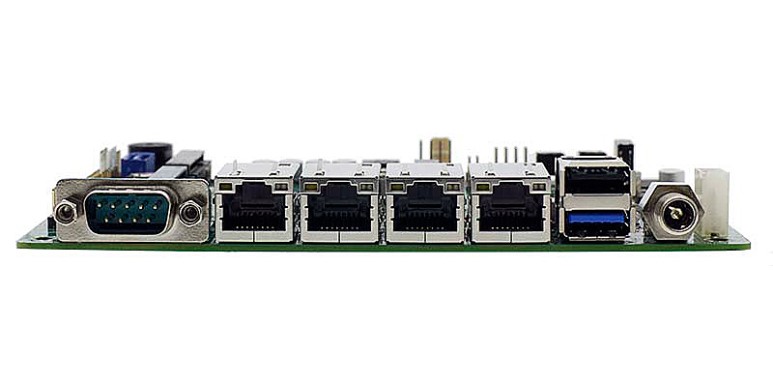

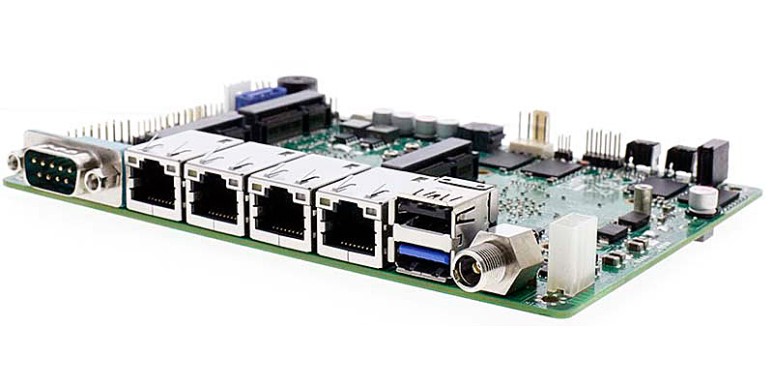

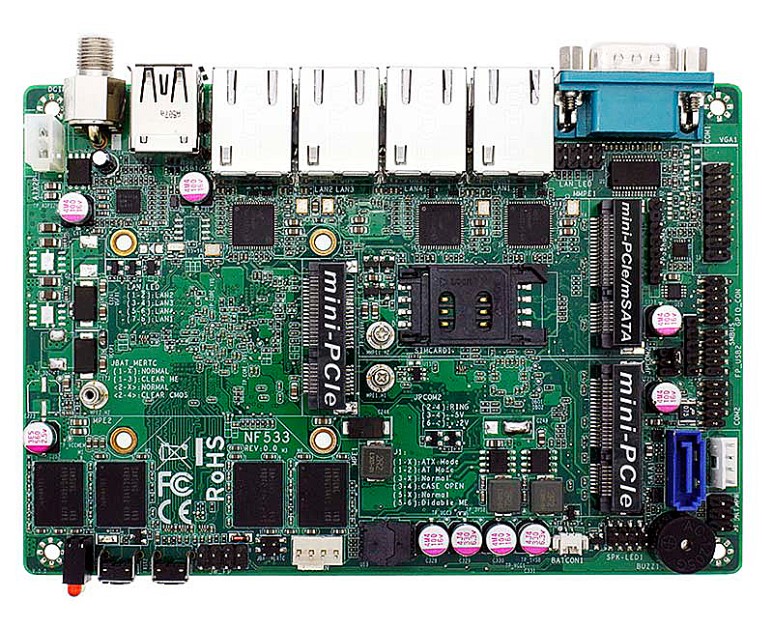

Jetway NF533 3.5" SBC Motherboard

Processor

Intel¢ç Celeron J1900, 2.0GHz Quad-Core SoC, 10W, Bay Trail

Memory

Onboard 4GB DDR3L-1333 (non-expandable)

Graphics

Intel HD Graphics

Audio

NA

LAN

4 x Intel I211-AT Gigabit LAN

Storage

1 x SATA2 3Gb/s Connector

1 x Shared mSATA/mini-PCI Express Combo slot (Full-size)

Super IO

FINTEK F81768D

Onboard I/O Connectors

1 SATA2 3Gb/s Connector

1 Shared mSATA/mini-PCI Express Combo slot (full-size)

2 Mini-PCI Express slot (full-size)

1 Serial port headers (RS232/422/485, 2.0 mm pitch)

1 USB Pin Header for up to 2 additional USB 2.0 Ports (2.0 mm pitch)

1 VGA Header (2560X1600 @ 60Hz )

1 SIM Card Socket

1 8 bit GPIO Header

1 AT/ATX Mode jumper

1 PS/2 Mouse/Keyboard header

1 Chassis Intrusion header

2 2-pin LAN LED header

1 4-pin SMBUS header

1 Front Reset/Power buttons

1 4-pin Fan Header

1 4-pin SATA Power Output (Male)

1 2-pin +12V Alternate Power Connector (Molex 5566-2)
