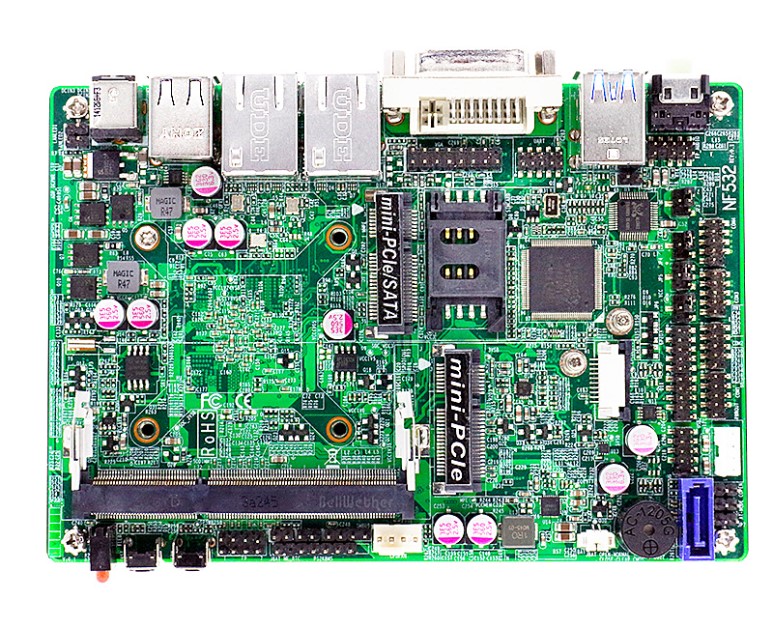

Jetway NF532 3.5" SBC Motherboard

Processor

Intel¢ç Celeron N2930 SoC, 1.83GHz ? 2.16GHz Burst, Quad-Core, 7.5W TDP/4.5W SDP

Memory

1 x 204-pin DDR3L-1333 SO-DIMM up to 8GB (1.35V required)

Graphics

Intel HD Graphics, 313MHz - 854MHz

Audio

Realtek ALC662 HD Audio codec

LAN

2 x Realtek RTL8111G Gigabit LAN with Enhanced Surge Protection

Storage

1 x SATA2 3Gb/s Connector

1 x Shared mSATA/mini-PCI Express Combo slot (Full-size)

Super IO

FINTEK F81866A

Onboard I/O Connectors

1 SATA2 3Gb/s Connector

1 Shared mSATA/mini-PCI Express Combo slot (full-size)

1 Mini-PCI Express slot (half-size)

4 Serial port headers (3 * RS232, 1 * RS232/422/485)

2 USB Pin Headers for up to 4 additional USB 2.0 Ports

1 VGA Header

1 SIM Card Socket

1 8 bit GPIO Header

1 AT/ATX Mode jumper

1 PS/2 Mouse/Keyboard header

1 Chassis Intrusion header

2 2-pin LAN LED header

1 2-pin SPDIF header

1 4-pin SMBUS header

1 9-pin Audio Connector

1 Front Reset/Power buttons

1 4-pin Fan Header

1 4-pin Floppy Power Output (Male)
