JNP691-4200/JNP691-3350

산업용보드 > EATX

- Intel Apollo Lake Pentium N4200 or Celeron N3350 Processors, 6W

- Embedded Long-life Series, Planned Lifecycle Through Q3'2031

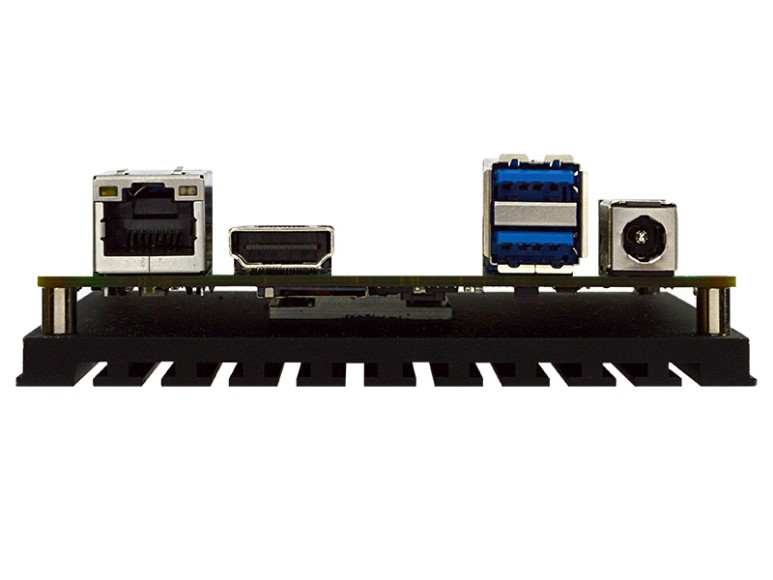

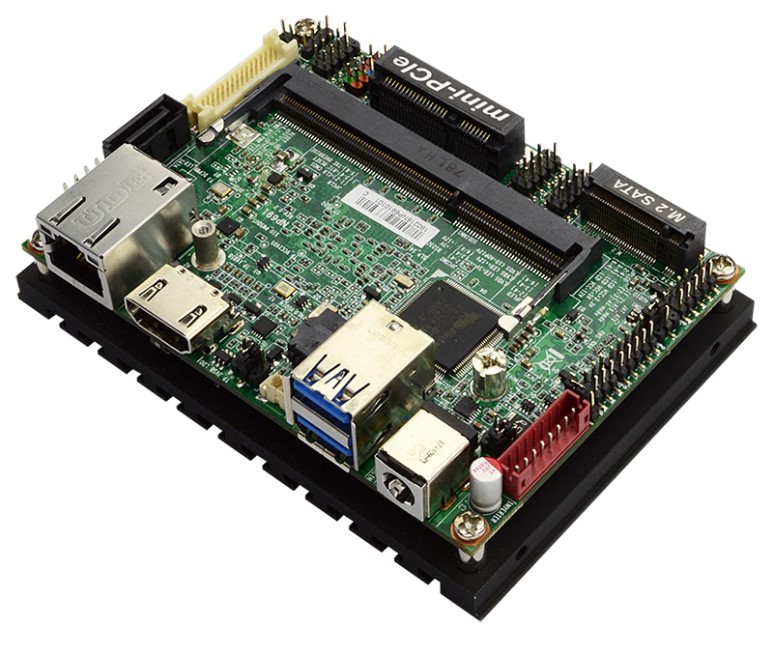

- CPU Mounted on Bottom for Easy Integration into Fanless Systems

- Supports 2 Displays, HDMI 4K @30Hz & LVDS

- 12V DC-In & M.2 & Mini PCI-E

- ECO-design for EuP/ErP

Specification

Model Name	NP691
Part Number	JNP691-4200 JNP691-3350
Form Factor	2.5" Pico-ITX (100 x 72mm)
Processor	Intel® Pentium N4200 Processor Quad Core 1.10 GHz - 2.50 GHz, 6W TDP Intel® Celeron N3350 Processor Dual Core 1.10 GHz - 2.40 GHz, 6W TDP * Ships with CPU heatsink for bench testing
Memory	1 * 204-pin DDR3L-1866 up to 8GB total, 1.35V required
Graphics	Intel HD Graphics 505, 200MHz - 750MHz (N4200) Intel HD Graphics 500, 200MHz - 650MHz (N3350)
Audio	Realtek ALC662VD HD Audio
LAN	1 x Realtek RTL8111H Gigabit LAN
Storage	1 x M.2 Slot (M-key, 2242 SATA only) 1 x SATA3 6Gb/s Connector
Super IO	FINTEK F81962D
TPM	Intel fTPM 2.0 (PTT) Trusted Computing Firmware
Form Factor	Pico-ITX Form Factor (100mm X 72mm)

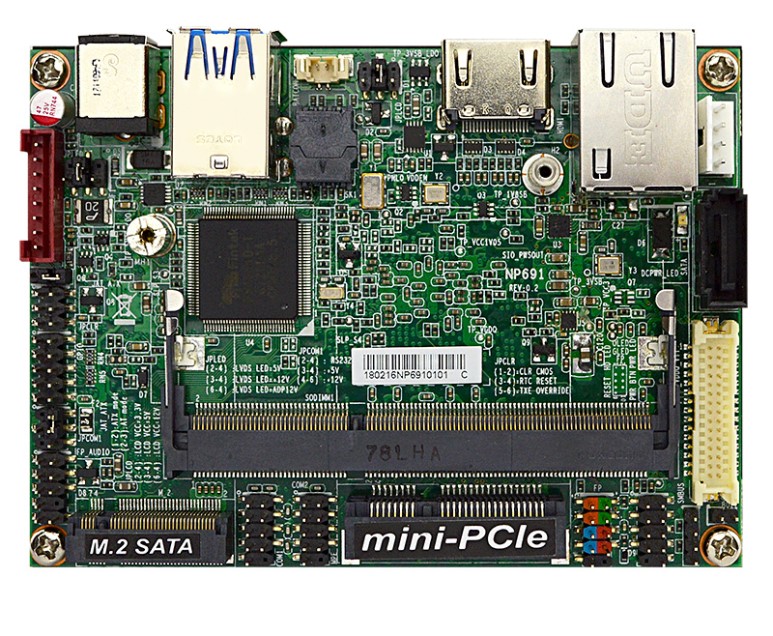

Onboard I/O Connectors

1 M.2 Slot

1 Full Size Mini PCI-E Slot

1 SATA3 6Gb/s Connector

1 USB Pin Header (2.0 mm pitch) for up to 2 additional USB 2.0 Ports

2 Serial Port Headers (2.0 mm pitch) (1 * RS232, 1 * RS232/422/485)

1 24-bit Dual Channel LVDS/Inverter (CHRONTEL CH7511B chipset up to 1920 x 1200)

1 AT/ATX Mode Jumper

1 10-pin GPIO Header

1 5-pin SMBUS Header

1 9-pin HD Audio Header

1 9-pin Front Panel Connector

1 4-pin Power-out Connector for 2.5" HDD/SSD
