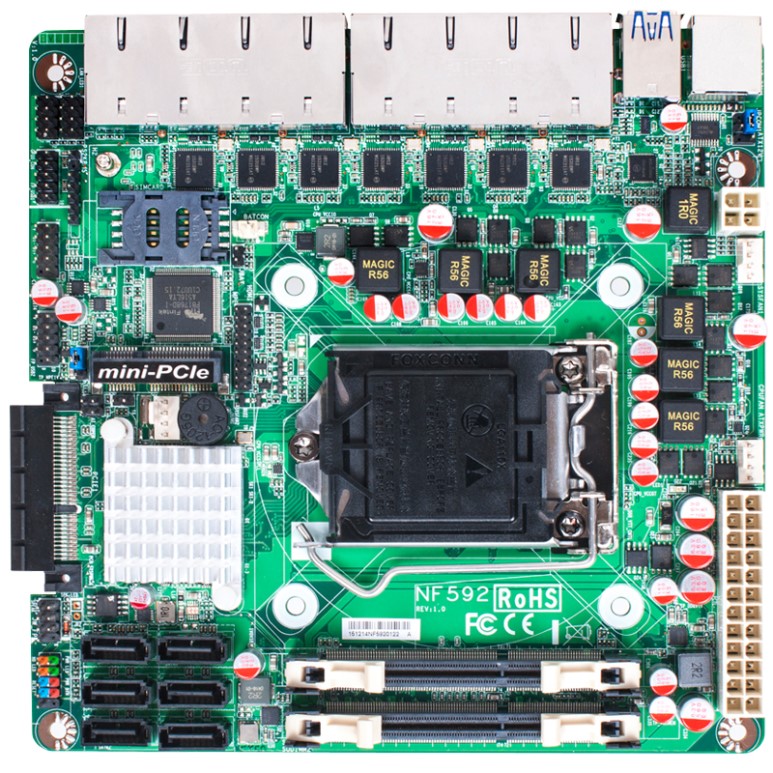

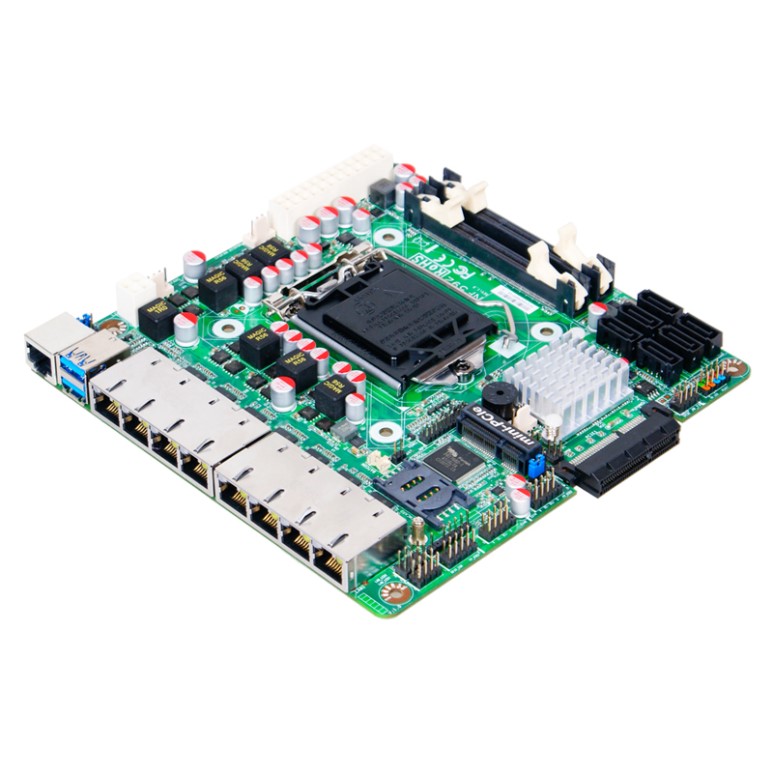

JNF592-Q170/NETWORK APPLIANCE

산업용보드 > EATX

Intel® Q170 Express Chipset Supports Intel LGA 1151 Socket Core™ i3, i5, i7 & Pentium Processors (Max. 65W)

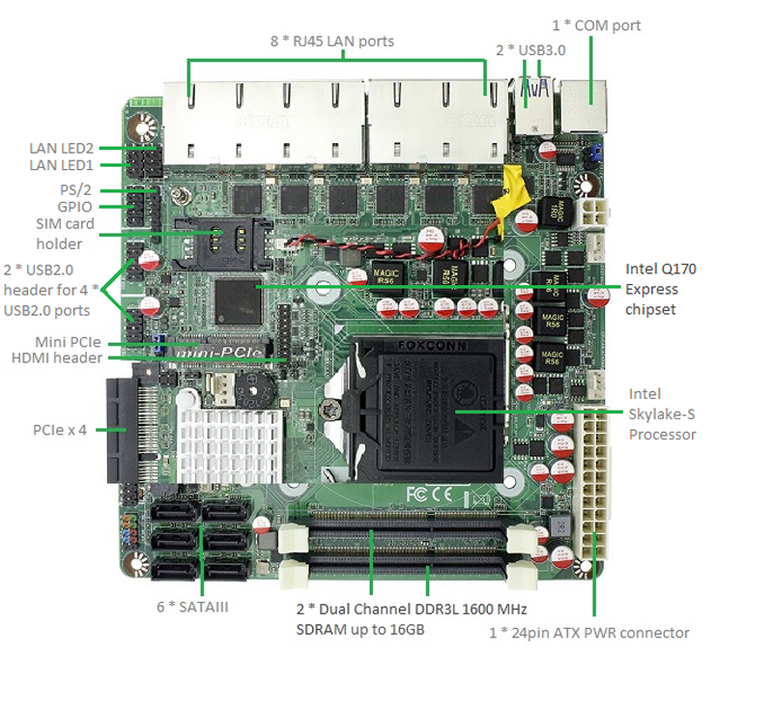

Features

1. Support Intel Core i7/i5/i3/ Pentium / Celeron desktop processor (LGA 1151) with Intel Q170 chipset

2. TWO DDR3L 1600MHz SDRAM SO-DIMM up to 16GB

3. Supports 1* HDMI

4. Supports 1* PCIe x4 and 1* Mini PCIe

5. Supports 2* USB3.0, 4* USB2.0

6. Slim Mini ITX Form Factor

Specifications

Form Factor
Dimensions	Slim Mini-ITX (6.7-in x 6.7-in, 170 x 170mm)
Processor System
CPU	Intel® LGA 1151 Socket Core i7/i5/i3/Pentium/Celeron Processor Supports Hyper-Threading Technology
Core Number	(By CPU)
Max Speed	(By CPU)
L2 Cache	( By CPU)
Chipset	Intel Q170 Express chipset
BIOS	AMI 128Mb SMT Flash ROM
Expansion Slot
mSATA	0
PCIe	1 * x4 side-slot (4 * PCIex1 combo signal)
Mini-PCIe	1 (full size)
SIM slot	1
Memory
Technology	Dual Channel DDR3L 1600MHz SDRAM
Max.	16GB
Socket	2 x SO-DIMM
Graphics
Controller	Intel® Gen9 Graphics supports DX 11/12, OGL4.3/4.4
VRAM	Shared Memory
VGA	0
LVDS	0
HDMI	1* (Internal) HDMI supports up to 4096×2160@24Hz
MultiDisplay	No
Ethernet
Ethernet	10/100/1000 Mbps
Controller	Intel i211AT * 7 & i219LM * 1 GbE
Connector	8 x RJ45
SATA
Max Data Transfer Rate	6 x SATAIII (6.0Gb/s)
Rear I/O
VGA	0
HDMI	0
Ethernet	8
USB	2 x USB 3.0
Serial	1 x RS232 (RJ45 type)
DC-input	0
Internal Connector
USB	4 x USB 2.0
LVDS / inverter	0
HDMI	1
SATA	6
mPCIe	1
mSATA	0
Chassis intrusion	1
PS/2	1
Audio Header	0
Watchdog Timer
Output	From Super I/O to drag RESETCON#
Interval	256 segments, 0,1,2…255sec/min
Power Requirements
Input PWR	ATX PWR (4+24 pin)
Power On	AT/ATX Supported AT: Directly PWR on as Power input ready ATX: Press Button to PWR on after Power input ready
Certifications
Certifications	CE, FCC, RoHS, REACH
Environment
Temperature	Operating: 0°C ? 60°C
Temperature	Storage: -20°C ? 85°C
