Model Name

NF693

Part Number

JNF693-H110

Form Factor

Mini-ITX (170 x 170mm)

Processor

6th / 7th Gen Intel¢ç Core i7 / i5 / i3 / Pentium Processor

Socket LGA 1151 (Formerly Skylake and Kaby Lake)

Chipset

Intel H110

Memory

2 x 260-pin SODIMM un-buffered Dual Channel DDR4-2133 up to 32GB Total

Graphics

Requires Intel Core processor with Intel HD Graphics

Audio

Realtek ALC662VD HD Audio

LAN

2 x Realtek RTL8111G PCI-E Gigabit LAN

Storage

2 x SATA3 6Gb/s

1 x M.2 SATA (M-key, 2242/2260)

1 x mSATA

Super IO

FINTEK F81803U

TPM

Intel fTPM 2.0 (PTT) Trusted Computing Firmware

Option: Onboard TPM v1.2 or v2.0

Back Panel Connectors

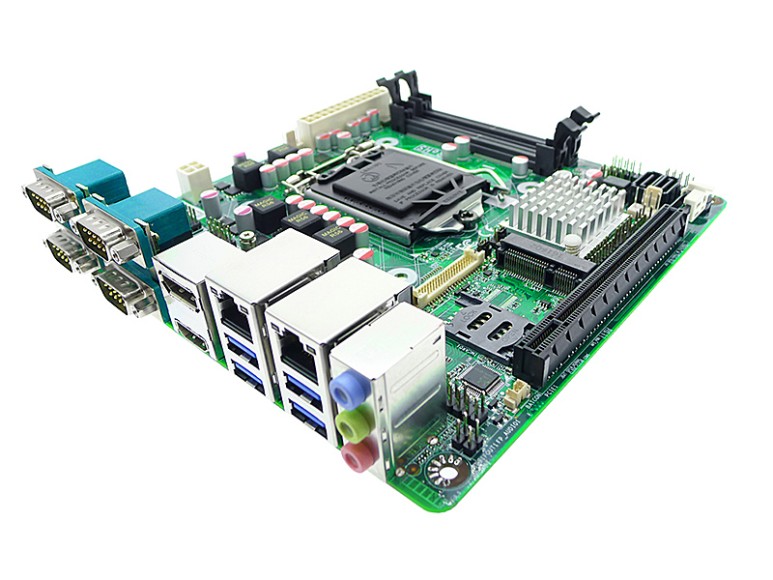

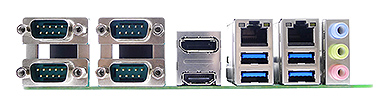

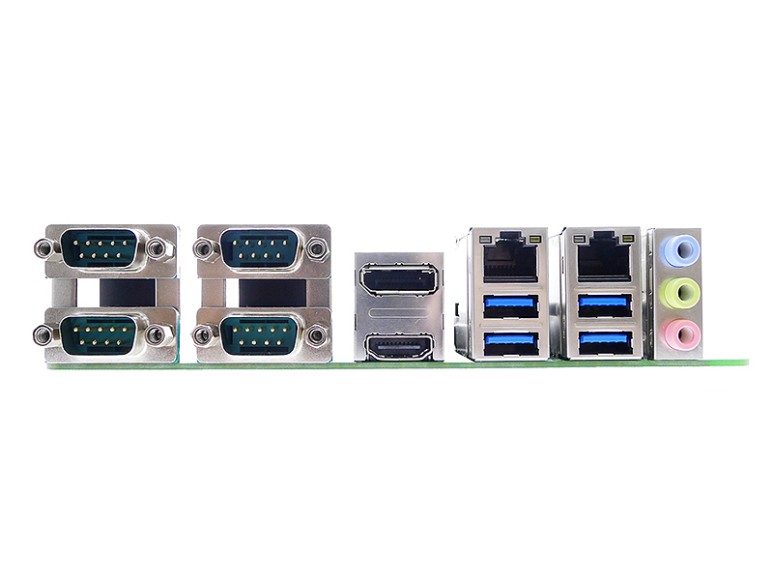

4 Serial Ports (3 * RS232, 1 * RS232/422/485)

1 DP 1.2 (4096 * 2304 @ 60Hz )

1 HDMI 1.4a (4096 * 2304 @ 24Hz)

2 RJ45 LAN (10/100/1000)

4 USB 3.0

3 3.5mm Audio Jack

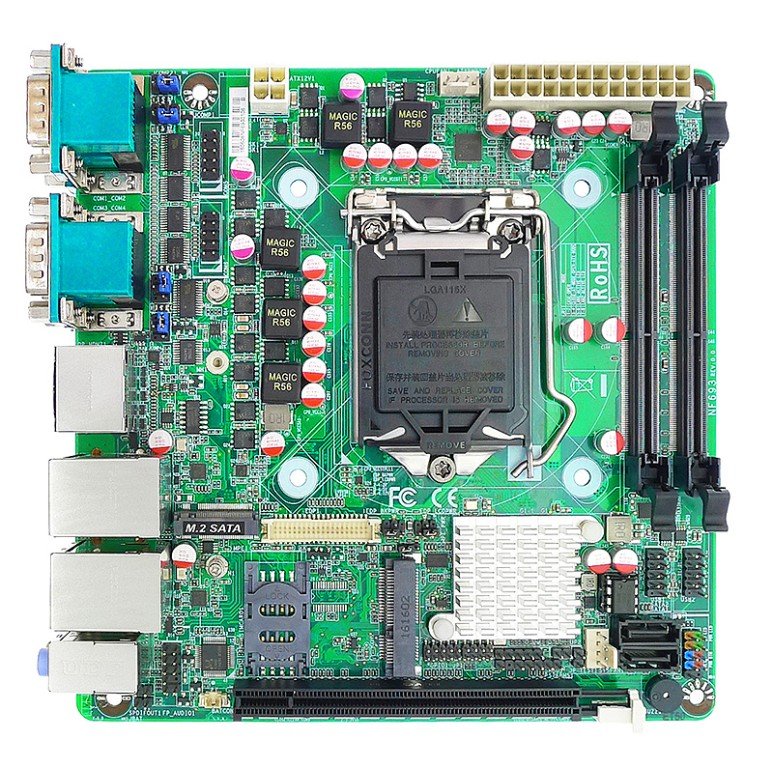

Onboard I/O Connectors

1 PCI-E 2.0 x16 Slot (by 16-lane)

1 mSATA/mini PCI-E Slot (Full-size)

1 M.2 slot (M-key, 2242/2260)

2 SATA3 6Gb/s Connectors

2 USB Pin Header for up to 4 additional USB 2.0 Ports

2 Serial Headers (2 * RS232)

1 Nuvoton TPM IC onboard (for NF693T)

1 40-pin eDP Connector

1 SIM Card Holder

1 Chassis Intrusion Jumper

1 AT/ATX Mode Jumper

1 10-pin GPIO Header

1 5-pin SMBUS Header

1 7-pin PS2 Keyboard Mouse Header

1 4-pin LAN LED Header

1 9-pin Audio Header

1 9-pin Front Panel Header

2 4-pin Fan Headers

1 24-pin ATX Power Connector

1 4-pin 12V ATX Power Connector

Market Segments Supported

¡î Banking ATM

¡î Commerce

¡î Digital Signage

¡î Industrial Automation/Control

¡î Retail (POS/Kiosk)

¡î Medical

Environment

Operating Temperature : 0 ~ 60¡ÆC

Storage Temperature : -20 ~ 85¡ÆC
