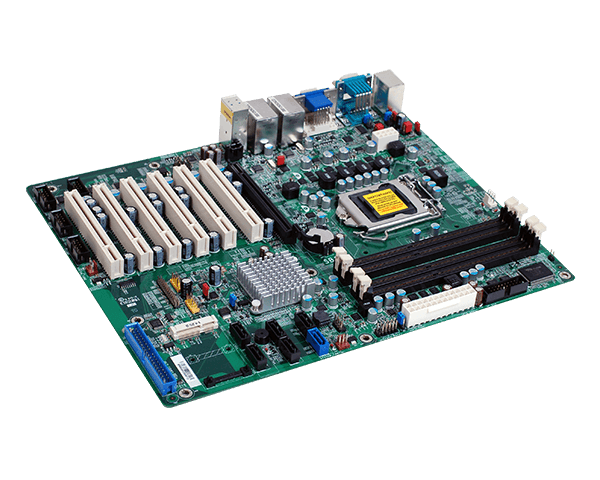

| SB600-C | 산업용보드 > EATX | 0 |
|---|---|---|
 Rich I/O: 2 Intel GbE, 6 COM, 10 USB 2.0 Expansion: 1 PCIe x16, 1 Mini PCIe, 6 PCI 1 DVI-I (DVI-D signal), 1 VGA 4 DDR3 DIMM up to 32GB 3rd/2nd Gen Intel® Core™ with Intel® B65 7-Year CPU Life Cycle Support ? System Processor 3rd generation Intel® CoreTM processors (22nm process technology) (Rev. AB0 or later) Intel® CoreTM i7-3770 (8M Cache, up to 3.9GHz); 77W Intel® CoreTM i5-3550S (6M Cache, up to 3.7GHz); 65W Intel® CoreTM i3-3220 (3M Cache, 3.3GHz); 55W Intel® Pentium® G2120 (3M Cache, 3.1 GHz); 65W - 2nd generation Intel® CoreTM processors (32nm process technology) Intel® CoreTM i7-2600 (8M Cache, up to 3.8 GHz); 95W Intel® CoreTM i5-2400 (6M Cache, up to 3.4 GHz); 95W Intel® CoreTM i3-2120 (3M Cache, 3.3 GHz); 65W Intel® Pentium® G850 (3M Cache, 2.9 GHz); 65W Intel® Advanced Vector Extensions (Intel® AVX) Instructions Intel® Turbo Boost Technology Chipset Intel® B65 Memory Four 240-pin DDR3 DIMM up to 32GB Dual channel DDR3 1333/1600MHz (3rd generation processors) Dual channel DDR3 1066/1333MHz (2nd generation processors) BIOS AMI SPI 64Mbit Graphics Controller Intel® HD Graphics Feature Supports 6 Graphics Execution Units (EUs) Intel® Clear Video Technology DirectX Video Acceleration (DXVA) support for accelerating video processing Display 1 x DVI-I (DVI-D signal) 1 x VGA DVI-I supports up to 1920x1200 @ 60Hz resolution VGA supports up to 2048x1536 @ 75Hz resolution Expansion Interface 1 x PCIe x16 (Gen 3.0 - 3rd generation processors; Gen 2.0 - 2nd generation processors) 1 Mini PCIe (Gen 2) 6 x PCI Audio Audio Codec Realtek ALC886 Ethernet Controller 2 x Realtek RTL8111DL PCIe (10/100/1000Mbps) Rear I/O Ethernet 2 x GbE (RJ45) Serial 2 x RS232/422/485 (RS232 and/or Power) (DB-9) USB 6 x USB 2.0 PS/2 1 x PS/2 (mini-DIN-6) Display 1 x DVI-I (DVI-D signal) 1 x VGA (DB-15) Audio 1 x Line-in 1 x Line-out 1 x Mic-in Internal I/O Serial 4 x RS232 USB 4 x USB 2.0 Audio 1 x Line-out 1 x Mic-in SATA 1 x SATA 3.0 (up to 6Gb/s) 5 x SATA 2.0 (up to 3Gb/s) DIO 1 x 8-bit DIO Watchdog Timer Output & Interval System Reset, Programmable via Software from 1 to 255 Seconds Security TPM Available Upon Request Power Type ATX Connector 24-pin ATX power 8-pin 12V power Consumption 100.77 W with i7-2600 at 3.40GHz and 2x 2GB DDR3 DIMM OS Support OS Support Windows XP Professional x86 & SP3 (32-bit) Windows XP Professional x64 & SP2 (64-bit) Windows 7 Ultimate x86 & SP1 (32-bit) Windows 7 Ultimate x64 & SP1 (64-bit) Windows 8 Enterprise x86 (32-bit) Windows 8 Enterprise x64 (64-bit) Environment Temperature Operating: 0 to 60°C Storage: -20 to 85°C Humidity Operating: 10% to 90% RH Storage: 10 to 90% RH Mechanism Dimensions ATX form factor 305mm (12") x 244mm (9.6") Packing List Packing List 1 SB600-C motherboard 2 Serial ATA data cables 1 IDE cable 2 USB port cables (with bracket) 2 COM port cables (with bracket) 1 I/O shield 1 DVD
