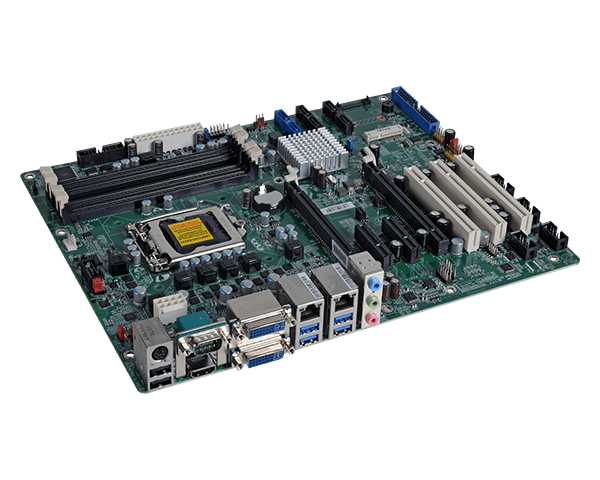

| CL630-CRM | 산업용보드 > EATX | 0 |
|---|---|---|
 3rd/2nd Gen Intel® Xeon®/Core™, Intel® C216 Chipset Multiple expansion: 2 PCIe x16, 2 PCIe x4, 3 PCI, 1 Mini PCIe, 6 SATA 1 HDMI, 1 DVI-I, 1 DVI-D Dual channel DDR3 1600MHz DIMM up to 32GB Rich I/O: 2 Intel GbE, 12 USB, 6 COM 7-Year CPU Life Cycle Support ? System Processor LGA 1155 socket for: - 3rd Generation processors (22nm process technology) Intel® Xeon® E3-1275v2 (8M Cache, up to 3.9GHz); 77W Intel® Xeon® E3-1225v2 (8M Cache, up to 3.6GHz); 77W Intel® Core™ i7-3770 (8M Cache, up to 3.9GHz); 77W Intel® Core™ i5-3550S (6M Cache, up to 3.7GHz); 65W Intel® Core™ i3-3220 (3M Cache, 3.3GHz); 55W Intel® Pentium® G2120 (3M Cache, 3.1GHz); 65W - 2nd Generation processors (32nm process technology) Intel® Xeon® E3-1275 (8M Cache, up to 3.8GHz); 95W Intel® Xeon® E3-1225 (6M Cache, up to 3.4GHz); 95W Intel® Core™ i7-2600 (8M Cache, up to 3.8GHz); 95W Intel® Core™ i5-2400 (6M Cache, up to 3.4GHz); 95W Intel® Core™ i3-2120 (3M Cache, 3.3GHz); 65W Intel® Pentium® G850 (3M Cache, 2.9GHz); 65W Chipset Intel® C216 Chipset Memory Four 240-pin ECC DIMM up to 32GB Dual Channel DDR3 1600MHz BIOS AMI SPI 64Mbit Graphics Controller Intel® HD Graphics 4000P Feature OpenGL 3.0, DirectX 11.1 Display 2 x DVI-I 1 x HDMI DVI-I/HDMI: resolution up to 1920x1200 @ 60Hz VGA: 32-bit resolution up to 2048x1536 @ 75Hz Expansion Interface 2 x PCIe x16 2 x PCIe x4 3 x PCI 1 x Mini PCIe Audio Audio Codec Realtek ALC886 Ethernet Controller 1 x Intel® WG82579LM with iAMT8.0 (10/100/1000Mbps) 1 x Intel® WG82574L PCIe (10/100/1000Mbps) Rear I/O Ethernet 2 x GbE (RJ-45) Serial 1 x RS-232/422/485 (RS-232 w/ power) (DB-9) USB 4 x USB 3.0 2 x USB 2.0 PS/2 1 x PS/2 Display 1 x HDMI 2 x DVI-I Audio ? 1 x Line-in 1 x Line-out 1 x Mic-in Internal I/O Serial 4 x RS-232 1 x RS-232/422/485 USB 6 x USB 2.0 Audio 1 x Audio (Line-out/Mic-in) 1 x S/PDIF SATA 2 x SATA 3.0 4 x SATA 2.0 DIO 1 x 8-bit DIO Other I/O 1 x IDE Watchdog Timer Output & Interval System Reset, Programmable via Software from 1 to 255 Seconds Security TPM Available Upon Request Power Type ATX Connector 8-pin ATX 12V power 24-pin ATX power Consumption 86.49 W with E3-1275 at 3.40GHz and 4x 1GB DDR3 DIMM RTC Battery CR2032 Coin Cell OS Support OS Support Windows XP Professional x86 & SP3 (32-bit) Windows XP Professional x64 & SP2 (64-bit) Windows 7 Ultimate x86 & SP1 (32-bit) Windows 7 Ultimate x64 & SP1 (64-bit) Windows 8 Enterprise x86 (32-bit) Windows 8 Enterprise x64 (64-bit) Environment Temperature Operating: 0 to 60°C Storage: -20 to 85°C Humidity Operating: 5 to 90% RH Storage: 5 to 90% RH MTBF 421,414 hrs @ 25°C; 232,907 hrs @ 45°C Calculation model: Telcordia Issue 2, Method I Case 3 Environment: GB, GC ? Ground Benign, Controlled Mechanism Dimensions ATX form factor 305mm (12") x 244mm (9.6") Packing List Packing List 1 CL630-CRM motherboard 2 USB port cables (with bracket) 2 Serial ATA data cables 2 COM port cables (with bracket) 1 I/O shield 1 DVD
