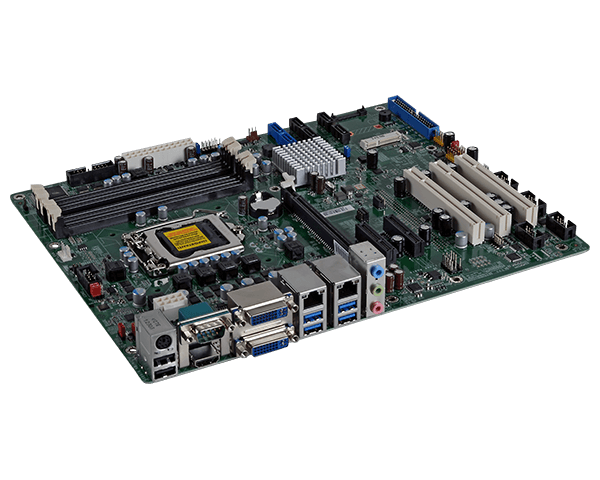

| MB630-CRM | 산업용보드 > EATX | 0 |
|---|---|---|
|
제품문의 02-3016-2464 http://www.wjubc.co.kr 3rd/2nd Gen Intel® Core™, Intel® Q77 Chipset Dual channel DDR3 1600MHz DIMM up to 32GB 1 HDMI, 2 DVI-I Multiple expansion: 1 PCIe x16, 2 PCIe x4, 3 PCI, 1 Mini PCIe, 6 SATA Rich I/O: 2 Intel GbE, 12 USB, 6 COM 7-Year CPU Life Cycle Support ? System Processor LGA 1155 socket for: - 3rd generation Intel® Core™ processors (22nm process technology) Intel® Core™ i7-3770 (8M Cache, up to 3.9GHz); 77W Intel® Core™ i5-3550S (6M Cache, up to 3.7GHz); 65W Intel® Core™ i3-3220 (3M Cache, 3.3GHz); 55W Intel® Pentium® G2120 (3M Cache, 3.1 GHz); 65W - 2nd generation Intel® Core™ processors (32nm process technology) Intel® Core™ i7-2600 (8M Cache, up to 3.8 GHz); 95W Intel® Core™ i5-2400 (6M Cache, up to 3.4 GHz); 95W Intel® Core™ i3-2120 (3M Cache, 3.3 GHz); 65W Intel® Pentium® G850 (3M Cache, 2.9 GHz); 65W Chipset Intel® Q77 Chipset Memory Four 240-pin ECC DIMM up to 32GB Dual Channel DDR3 1600MHz BIOS AMI SPI 64Mbit Graphics Controller Intel® 4000 (i7); HD Graphics 2500 (i5/i3/Pentium) Feature OpenGL 3.0, DirectX 11.1 Display 2 x DVI-I 1 x HDMI DVI-I/HDMI: resolution up to 1920x1200 @ 60Hz VGA: 32-bit resolution up to 2048x1536 @ 75Hz Expansion Interface 1 x PCIe x16 2 x PCIe x4 3 x PCI 1 x Mini PCIe Audio Audio Codec Realtek ALC886 Ethernet Controller 1 x Intel® WG82579LM with iAMT8.0 (10/100/1000Mbps) 1 x Intel® WG82574L PCIe (10/100/1000Mbps) Rear I/O Ethernet 2 x GbE (RJ-45) Serial 1 x RS-232/422/485 (RS-232 w/ power) (DB-9) USB 4 x USB 3.0 2 x USB 2.0 PS/2 1 x PS/2 Display 1 x HDMI 2 x DVI-I Audio 1 x Line-in 1 x Line-out 1 x Mic-in Internal I/O Serial 4 x RS-232 1 x RS-232/422/485 USB 6 x USB 2.0 Audio 1 x Audio (Line-out/Mic-in) 1 x S/PDIF SATA 2 x SATA 3.0 4 x SATA 2.0 DIO 1 x 8-bit DIO Other I/O 1 x IDE Watchdog Timer Output & Interval System Reset, Programmable via Software from 1 to 255 Seconds Security TPM Available Upon Request Power Type ATX Connector 8-pin ATX 12V power 24-pin ATX power Consumption TBD RTC Battery CR2032 Coin Cell OS Support OS Support Windows XP Professional x86 & SP3 (32-bit) Windows XP Professional x64 & SP2 (64-bit) Windows 7 Ultimate x86 & SP1 (32-bit) Windows 7 Ultimate x64 & SP1 (64-bit) Windows 8 Enterprise x86 (32-bit) Windows 8 Enterprise x64 (64-bit) Environment Temperature Operating: 0 to 60°C Storage: -20 to 85°C Humidity Operating: 5 to 90% RH Storage: 5 to 90% RH MTBF TBD Mechanism Dimensions ATX form factor 305mm (12") x 244mm (9.6") Packing List Packing List 1 MB630-CRM motherboard 1 Serial ATA data cable 1 I/O shield 1 DVD
