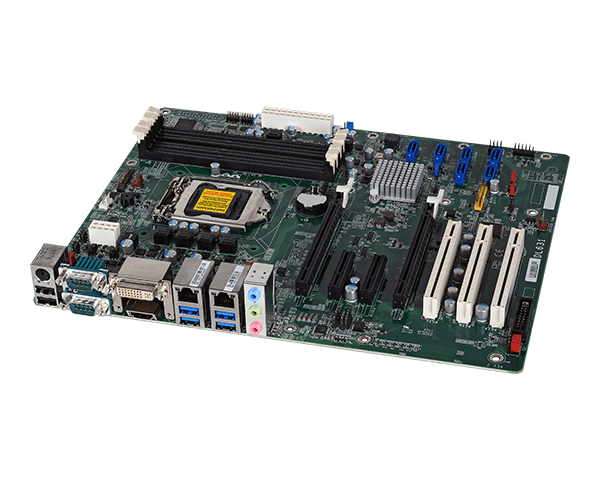

| DL631-C226 | 산업용보드 > EATX | 0 |
|---|---|---|
|
제품문의 02-3016-2464 http://www.wjubc.co.kr Rich I/O: 2 Intel GbE, 10 USB, 6 COM Multiple expansion: 2 PCIe x16 (1 x16 or 2 x8 signal), 2 PCIe x4 (1 x4 and 1 x1 signal), 3 PCI, 6 SATA 3.0 1 HDMI, 1 DVI-I Dual channel DDR3 1600MHz DIMM up to 32GB 4th Gen Intel® Xeon®/Core™, Intel® C226 Chipset 7-Year CPU Life Cycle Support ? System Processor 4th Generation Intel® Core™ processors, LGA 1150 socket Intel® Xeon® E3-1275 v3 Processor, 8M Cache, 3.9 GHz, 95W Intel® Xeon® E3-1268L v3 Processor, 8M Cache, 3.3 GHz, 45W Intel® Xeon® E3-1225 v3 Processor, 8M Cache, 3.6 GHz, 95W Intel® Core™ i7-4770S Processor, 8M Cache, 3.9 GHz, 65W Intel® Core™ i7-4770TE Processor, 8M Cache, 3.3 GHz, 45W Intel® Core™ i5-4590S Processor, 6M Cache, 3.7 GHz, 65W Intel® Core™ i5-4590T Processor, 6M Cache, 3.0 GHz), 35W Intel® Core™ i5-4570S Processor, 6M Cache, 3.6 GHz, 65W Intel® Core™ i5-4570TE Processor, 4M Cache, 3.3 GHz, 35W Intel® Core™ i3-4360 Processor, 4M Cache, 3.7 GHz, 54W Intel® Core™ i3-4350T Processor, 4M Cache, 3.1 GHz, 35W Intel® Core™ i3-4340TE Processor, 4M Cache, 2.6 GHz, 35W Intel® Core™ i3-4330 Processor, 4M Cache, 3.5 GHz, 54W Intel® Core™ i3-4330TE Processor, 4M Cache, 2.4 GHz, 35W Intel® Pentium® G3420 Processor, 3M Cache, 3.2 GHz, 53W Intel® Pentium® G3320TE Processor, 3M Cache, 2.3 GHz, 35W Intel® Celeron® G1820 Processor, 2M Cache, 2.7 GHz, 53W Intel® Celeron® G1820TE Processor, 2M Cache, 2.2 GHz, 35W Chipset Intel® C226 Chipset Memory Four 240-pin ECC DIMM up to 32GB Dual Channel DDR3 1333/1600MHz BIOS AMI SPI 64Mbit Graphics Controller Intel® HD Graphics Feature OpenGL 4.0, DirectX 11.1 Display ? 1 x HDMI 1 x DVI-I DVI-I: resolution up to 1920x1200 @ 60Hz HDMI: resolution up to 4096x2304 @ 24Hz or 2560x1600 @ 60Hz Expansion Interface 2 x PCIe x16 (1 x16 or 2 x8 signal) 2 x PCIe x4 (1 x4 and 1 x1 signal) 3 x PCI 6 x SATA 3.0 Audio Audio Codec Realtek ALC886 Ethernet Controller 1 x Intel® I210 PCIe (10/100/1000Mbps) 1 x Intel® I217LM with iAMT9.0 (10/100/1000Mbps) Rear I/O Ethernet 2 x GbE (RJ-45) Serial 2 x RS-232/422/485 (RS-232 w/ power) (DB-9) USB 4 x USB 3.0 2 x USB 2.0 PS/2 1 x PS/2 Display 1 x HDMI 1 x DVI-I Audio 1 x Line-out 1 x Mic-in 1 x Line-in Internal I/O Serial 4 x RS232 (2.0mm pitch) USB 4 x USB 2.0 Audio 1 x Audio (Line-out/Mic-in) 1 x S/PDIF SATA 6 x SATA 3.0 RAID 0/1/5/10 DIO 1 x 8-bit DIO LPC 1 x LPC Watchdog Timer Output & Interval System Reset, Programmable via Software from 1 to 255 Seconds Security TPM Available Upon Request Power Type ATX Connector 8-pin ATX 12V power 24-pin ATX power Consumption 75.07W with E3-1275 v3 at 3.50GHz and 4x 2GB DDR3 DIMM RTC Battery CR2032 Coin Cell OS Support OS Support Windows 7 Ultimate x86 & SP1 (32-bit) Windows 7 Ultimate x64 & SP1 (64-bit) Windows 8 Enterprise x86 (32-bit) Windows 8 Enterprise x64 (64-bit) Windows 10 IoT Enterprise (64-bit) Environment Temperature Operating: 0 to 60°C Storage: -20 to 85°C Humidity Operating: 5 to 90% RH Storage: 5 to 90% RH MTBF 418,149 hrs @ 25°C; 238,875 hrs @ 45°C Calculation model: Telcordia Issue 2, Method I Case 3 Environment: GB, GC ? Ground Benign, Controlled Mechanism Dimensions ATX form factor 305mm (12") x 244mm (9.6") Packing List Packing List 1 DL3631 motherboard 770-DL6311-000G 1 Serial ATA data cable (Length: 500mm, w/lock) 332-553001-005G 1 I/O shield A49-HD6310-001G 1 DVD 643-HMD000-200G
