| SD631-C236 | 산업용보드 > EATX | 0 |
|---|---|---|
|

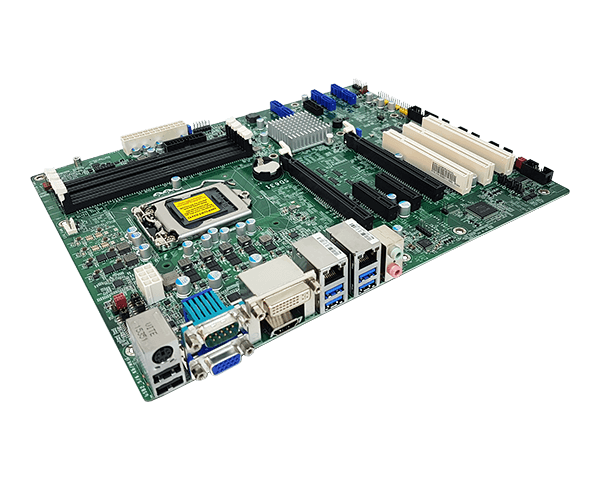

제품문의 02-3016-2464 http://www.wjubc.co.kr 6th/7th Gen Intel® Core™ with Intel® C236 Rich I/O: 2 Intel GbE, 6 COM, 6 USB 3.0, 8 USB 2.0 Multiple expansion: 2 PCIe x16 (1 x16 or 2 x8 signal), 2 PCIe x4, 3 PCI, 1 LPC 3 independent displays: VGA + DVI-I (DVI-D signal) + HDMI 4 DDR4 ECC DIMM up to 64GB 15-Year CPU Life Cycle Support ? System Processor Intel® Xeon® E3 v5/v6 LGA 1151 Socket Processors with TDP up to 80W with C236 SKU 6th/7th Generation Intel® Core™ /Pentium®/Celeron® LGA 1151 Socket Processors with TDP up to 65W Chipset Intel® C236 Chipset Memory Four 288-pin ECC DIMM up to 64GB Dual Channel DDR4 1866/2133MHz BIOS Insyde SPI 128Mbit Graphics Controller Intel® HD Gen 9 Graphics Feature OpenGL 5.0, DirectX 12, OpenCL 2.1 HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9 HW Encode: MPEG2, AVC/H264, JPEG, HEVC/H265, VP8, VP9 Display 1 x VGA 1 x DVI-I (DVI-D signal) 1 x HDMI VGA: resolution up to 1920x1200 @ 60Hz DVI-I: resolution up to 1920x1200 @ 60Hz HDMI: resolution up to 4096x2160 @ 24Hz Triple Displays VGA + DVI-I (DVI-D signal) + HDMI Expansion Interface 2 x PCIe x16 (1 x16 or 2 x8 signal) (Gen 3) 2 x PCIe x4 (Gen 3) 3 x PCI Audio Audio Codec Realtek ALC888S-VD2-GR Ethernet Controller 1 x Intel® I210AT PCIe (10/100/1000Mbps) 1 x Intel® I219LM PCIe with iAMT11.0 (10/100/1000Mbps) (only Core i7/i5 supports iAMT) Rear I/O Ethernet 2 x GbE (RJ-45) Serial 1 x RS-232/422/485 (RS-232 w/ power) (DB-9) USB 4 x USB 3.0 2 x USB 2.0 PS/2 1 x PS/2 (mini-DIN-6) Display 1 x VGA 1 x DVI-I (DVI-D signal) 1 x HDMI Audio 1 x Line-in (opt., MOQ required) 1 x Line-out 1 x Mic-in Internal I/O Serial 1 x RS-232/422/485 (RS-232 w/ power) (2.54mm pitch) 4 x RS-232 (2.54mm pitch) USB 2 x USB 3.0 (2.00mm pitch) 6 x USB 2.0 (2.54mm pitch) or 4 x USB 2.0 (2.54mm pitch) + 1 x Vertical USB 2.0 (type A) (opt., MOQ required) Audio 1 x S/PDIF SATA 6 x SATA 3.0 (up to 6Gb/s) RAID 0/1/5/10 DIO 1 x 8-bit DIO LPC 1 x LPC (supports LPC EXT-RS232/RS485 module) SMBus 1 x SMBus Watchdog Timer Output & Interval System Reset, Programmable via Software from 1 to 255 Seconds Security TPM opt., MOQ required Power Type ATX Connector 8-pin ATX 12V power 24-pin ATX power Consumption Typical: Xeon 80W: 12V @ 2.83A (34.02Watt) Max.: Xeon 80W: 12V @ 7.23A (86.78Watt) RTC Battery CR2032 Coin Cell OS Support OS Support Windows 7 32/64-bit Window 8.1 64-bit Windows 10 64-bit Ubuntu 16.04 Note: 7th Gen CPU SKU ONLY support Windows 10 64-bit & Ubuntu 16.04. Environment Temperature Operating: 0 to 60°C Storage: -40 to 85°C Humidity Operating: 5 to 90% RH Storage: 5 to 90% RH MTBF 367,369 hrs @ 25°C; 208,834 hrs @ 45°C; 131,021 hrs @ 60°C Calculation Model: Telcordia Issue 2, Method Case 3 Environment: GB, GC ? Ground Benign, Controlled Mechanism Dimensions ATX Form Factor 305mm (12") x 244mm (9.6") Height PCB: 1.6mm Top Side: 31.47 mm Bottom Side: 4.40 mm Packing List Packing List 1 SD631-C236 motherboard 1 COM port cables (Length: 400mm, 2 x COM ports) A81-015012-001G 1 Serial ATA data cable (Length: 500mm) 332-553001-005G 1 I/O shield A49-SD6300-001G 1 DVD
