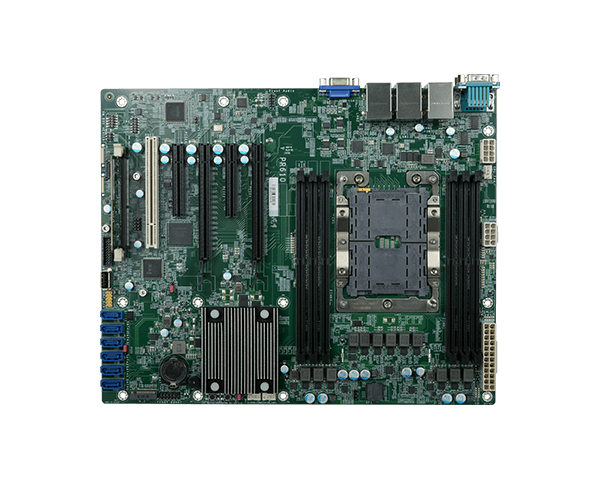

| PR610-C621 | 산업용보드 > EATX | 0 |
|---|---|---|
|
제품문의 02-3016-2464 http://www.wjubc.co.kr 2nd Gen Intel® Xeon® Scalable Processor with Intel® C621 6 DDR4 RDIMM up to 192GB VGA resolution up to 1920x1200 @ 60Hz Rich I/O: 2 Intel GbE, 1 dedicated IPMI LAN, 2 COM, 6 SATA 3, 5 USB 2.0, 6 USB 3.1 Gen1 Multiple expansion: 2 PCIe x16, 2 PCIe x8, 1 PCI, 1 M.2 15-Year CPU Life Cycle Support System Processor 2nd Generation Intel® Xeon® Scalable Processor Family, LGA 3647 Socket, TDP up to 165W Chipset Intel® C621 Chipset Memory Six 288-pin RDIMM up to 192GB Single Channel DDR4 up to 2666 MHZ BIOS Insyde SPI 128Mbit Graphics Display 1 x VGA (opt.) Single Display VGA (opt.) Expansion Interface 2 x PCIe x16 (Gen 3) 2 x PCIe x8 (Gen 3) 1 x PCI 1 x DDR4 SO-DIMM for SEM2500/2510 (opt.) 1 x M.2 M key 2280 (SATA/PCIe Gen3 x4 NVMe) Audio Audio Codec ALC887 Ethernet Controller 2 x Intel® I210AT PCIe (10/100/1000Mbps) IPMI: 1 x RTL8211F Rear I/O Ethernet 2 x GbE (RJ-45) 1 x dedicated IPMI LAN (opt.) USB 4x USB 3.1 Gen1 2x USB 2.0 stack (opt.w/ RJ45+USB2.0 stack) Display 1 x VGA Internal I/O Serial 2 x RS-232 (DB-9) USB 2x USB 2.0 header (2x USB 2.0) 1x USB 2.0 vertical Type A 1x USB 3.1 Gen1 header (2x USB 3.1 gen1) SATA 6 x SATA 3 (up to 6Gb/s) SMBus 1 x SMBus Watchdog Timer Output & Interval System Reset, Programmable via Software from 1 to 255 sec/Min Security TPM TPM 2.0 (opt.) Power Type ATX Connector 8-pin ATX 12V power 24-pin ATX power Consumption TBD RTC Battery CR2032 Coin Cell OS Support OS Support Windows 10 IoT Enterprise LTSB RS1(64-bit) Windows Server 2012R2 Windows Server 2016 Ubuntu18.04 Environment Temperature Operating: 0 to 60°C Storage: -40 to 85°C Humidity Operating: 5 to 90% RH, Non-condensing Storage: 5 to 90% RH, Non-condensing MTBF TBD Mechanism Dimensions ATX Form Factor 305mm (12") x 244mm (9.6") Height PCB: TBD Top Side: TBD mm Bottom Side: TBD Packing List Packing List 1 PR610-C621 motherboard 1 Serial ATA data cable (Length: 500mm) 332-553001-005G 1 I/O shield TBD 1 M.2 screw for 2280 A32-112016-041G 1 SEM2500/2510 (by ordered P/N)
