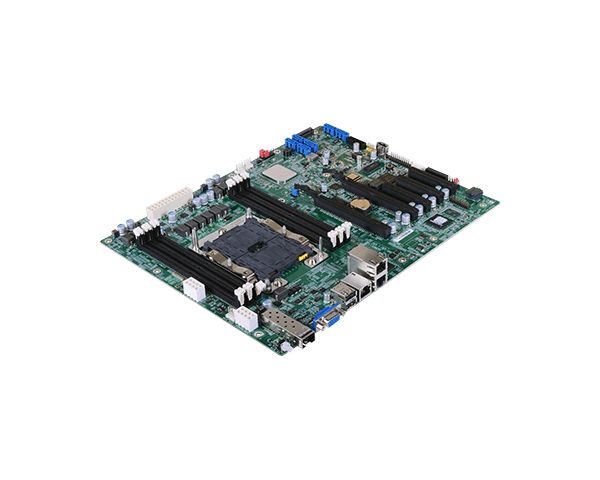

| PL610-C622 | 산업용보드 > EATX | 0 |
|---|---|---|
|
제품문의 02-3016-2464 http://www.wjubc.co.kr 15-Year CPU Life Cycle Support Rich I/O: 2 Intel GbE, 1 dedicated IPMI LAN, 1x Fiber 10 GbE, 1 COM, 6 SATA 3.0, 5 USB 2.0, 2 USB 3.0 Multiple expansion: 2 PCIe x16, 1 PCIe x8, 2 PCIe x4, 1 M.2 VGA resolution up to 1920x1200 @ 60Hz 6 DDR4 RDIMM up to 192GB Intel® Xeon® Scalable Processor with Intel® C622 ? System Processor Intel® Xeon® Scalable Processor Family, LGA 3647 Socket, TDP up to 145W Intel® Xeon® Gold 6138T/6138/6130T/6130/6126T/6126/5120T/5119T/5118 Processor Intel® Xeon® Silver 4116T/4116/4114T/4110/4109T/ Processor Intel® Xeon® Bronze 3106 Processor Chipset Intel® C622 Chipset Memory Six 288-pin RDIMM up to 192GB DDR4 1600/1866/2133/2400/2666 MHz BIOS Insyde SPI 128Mbit Graphics Display 1 x VGA Single/Dual Displays VGA Expansion Interface 2 x PCIe x16 (Gen 3) 1 x PCIe x8 (Gen 3) 2 x PCIe x4 (Gen 3) 1 x M.2 2280 M key (PCIe Gen3 x 4 NVMe/SATA) Audio Audio Codec N/A Ethernet Controller GbE: i350-AM2 10GbE: CS4227 IPMI: RTL8211F Rear I/O Ethernet 2 x GbE (RJ-45) 1 x dedicated IPMI LAN 1x Fiber 10 GbE USB 2 x USB 2.0 PS/2 1 x PS/2 (mini-DIN-6) Display 1 x VGA Internal I/O Serial 1 x RS-232 (2.54mm pitch) USB 2 x USB 2.0 (2.54mm pitch) 1 x Vertical USB 2.0 2 x USB 3.0 SATA 6 x SATA 3.0 (up to 6Gb/s) SMBus 1 x SMBus Watchdog Timer Output & Interval System Reset, Programmable via Software from 1 to 255 Seconds Security TPM Infineon TPM 2.0 (optional) Power Type ATX Connector 8-pin ATX 12V power 24-pin ATX power Consumption TBD RTC Battery CR2032 Coin Cell OS Support OS Support Windows 10 IoT Enterprise LTSB RS1(64-bit) Windows Server 2012R2 Windows Server 2016 Ubuntu16.04 Environment Temperature Operating: 0 to 60°C Storage: -40 to 85°C Humidity Operating: 5 to 90% RH Storage: 5 to 90% RH MTBF TBD Mechanism Dimensions ATX Form Factor 305mm (12") x 244mm (9.6") Height PCB: TBD Top Side: TBD Bottom Side: TBD Packing List Packing List 1 PL610-C622 motherboard 1 COM port cable (Length: 400mm, 2 x COM ports) TBD 1 Serial ATA data cable (Length: 500mm) TBD 1 I/O shield TBD 1 DVD
